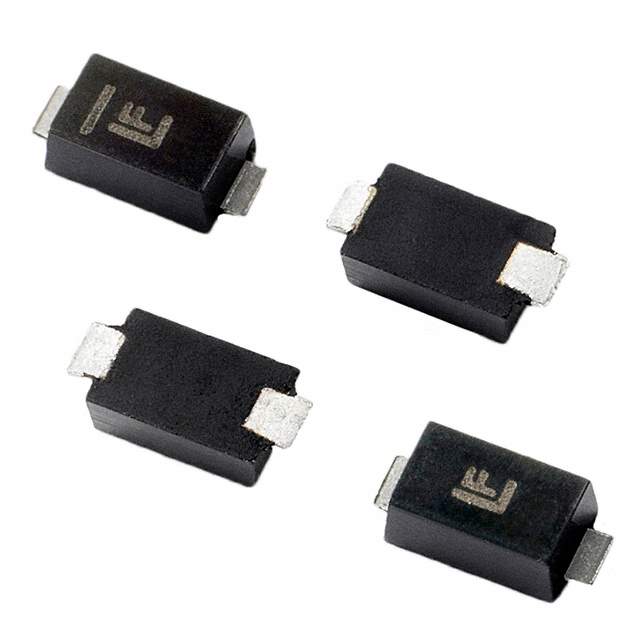

SMF4L18CA Real Image1 SMF4L18CA Real Image2
Same model may have multiple batches, images only for reference.
SMF4L18CA Real Image1 SMF4L18CA Real Image2
SMF4L18CA Real Image1 SMF4L18CA Real Image2
Same model may have multiple batches, images only for reference.

SMF4L18CA

Part No SMF4L18CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 29.2VC SOD123FL / 29.2V Clamp 13.7A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet
SMF4L18CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr Littelfuse Inc.
Series SMF4L
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 13.7A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Standard Package 3,000 pcs
Win Source Part Number 1383481-SMF4L18CA
Ultra Librarian 3D Model Ultra Librarian SMF4L18CA CAD Model

Description

The SMF4L18CA is a Zener type transient voltage suppressor diode from the SMF4L series. It is designed for general-purpose circuit protection and offers unidirectional channels.

  • Series: SMF4L
  • Type: Zener
  • Applications: General Purpose
  • Channels: Unidirectional
  • Voltage - Reverse Standoff (Typ): 18V
  • Voltage - Breakdown (Min): 20V
  • Voltage - Clamping (Max) @ Ipp: 29.2V @ 13.7A
  • Power - Peak Pulse: 400W
  • Current - Peak Pulse (10/1000µs): 13.7A
  • Mounting Type: Surface Mount
  • Package / Case: SOD-123F
  • Operating Temperature: -55°C ~ 150°C (TJ)
