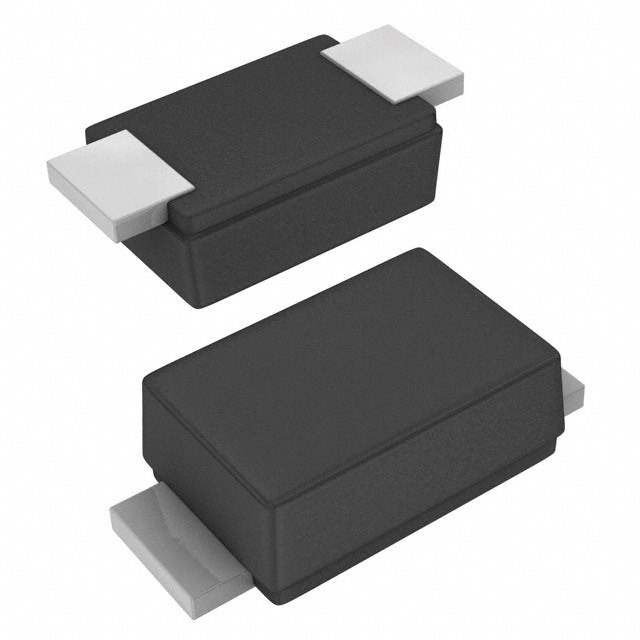

SMF36A

Name: SMF36A
Brand: Littelfuse Inc.
SKU: 669105
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMF36A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 36VWM 58.1VC SOD123F
Datasheet	SMF36A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SMF
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	3.44A
Power - Peak Pulse	200W
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	SOD-123FL
Supplier Device Package	SOD-123F (SMF)
Base Product Number	SMF36
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	669105-SMF36A
Ultra Librarian 3D Model	Ultra Librarian SMF36A CAD Model

Alternative Products

Description

The SMF36A is a Zener type TVS diode designed to protect electronic circuits from transients and overvoltage events.

Reverse Standoff Voltage: 36V
Breakdown Voltage: 40V
Clamping Voltage: 58.1V @ peak pulse current of 3.44A
Power Rating: 200W
Type: unidirectional TVS diode
Package: surface mount, SOD-123FL
Manufacturer: Littelfuse Inc.
RoHS: compliant
Suitable for: a wide range of electronic applications
