Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMF
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 14.7V
Current - Peak Pulse (10/1000µs) 10.1A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number SMF12
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 669075-SMF12CA
Package Tape & Reel (TR);Cut Tape (CT)
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Package Tape & Reel (TR)
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 10.1mA
Supplier Device Package SOD-123FL
Ultra Librarian 3D Model Ultra Librarian SMF12CA CAD Model

Description

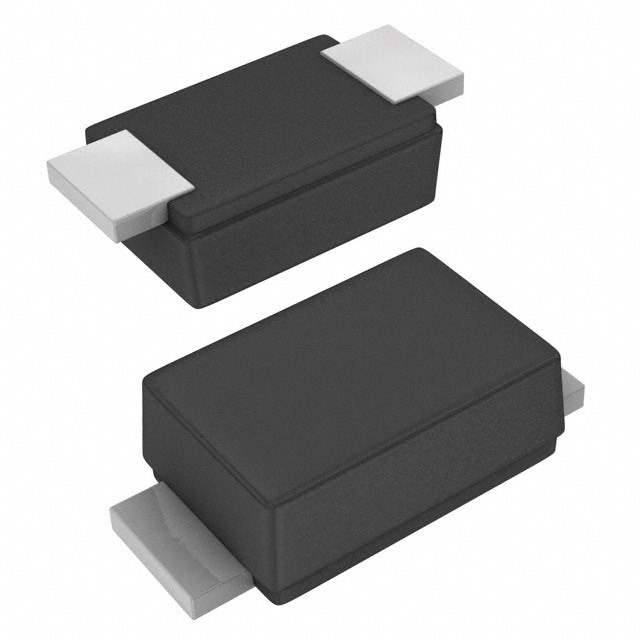

The SMF12CA is a Zener-type TVS diode from Littelfuse Inc. It is part of the SMF series and is designed for general purpose applications.

  • Package: SOD-123F package
  • Packaging: tape & reel
  • Voltage Reverse Standoff: 12V
  • Minimum Breakdown Voltage: 13.3V
  • Clamping Voltage @ Peak Pulse Current: 14.7V
  • Peak Pulse Power: 200W
  • Channel: bidirectional
  • Peak Pulse Current: 10.1A
  • Mounting: surface mountable
  • Operating Temperature: -55°C to 150°C
  • Product Status: active
  • Power Line Protection: no
  • REACH Regulations: unaffected
