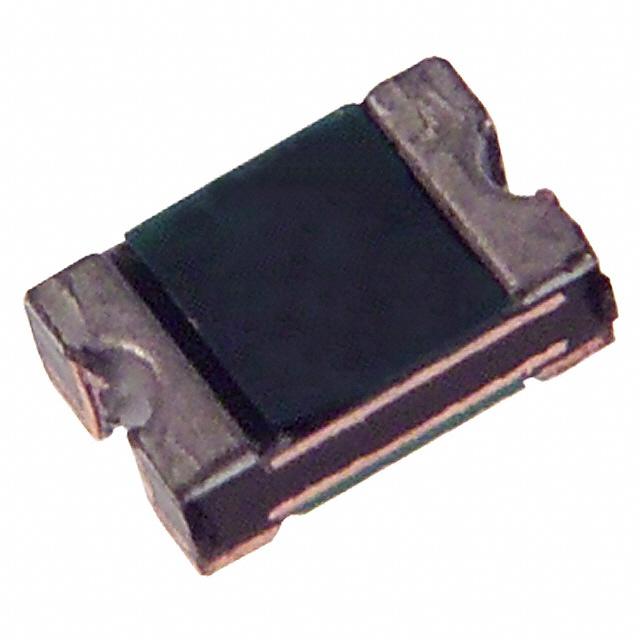

Same model may have multiple batches, images only for reference.
SMD0805P010TFA Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SMD0805P010TFA

Part No SMD0805P010TFA
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 15V 100MA 0805
Datasheet
SMD0805P010TFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Min) 1 Ohm
Resistance - Post Trip (R1) (Max) 6 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 190778-SMD0805P010TFA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD0805P010TFA CAD Model

Description

The Littelfuse Inc. 190778-SMD0805P010TFA is an obsolete (EOL) electronic component that has a medium popularity in the market.

  • Type: It is a polymeric type circuit protection component
  • Voltage-max: 15V
  • Current-max: 40A
  • Thickness: 0.039 inches
  • Mounting: is mountable using SMD (SMT) technology.
  • Usage: This component is great for use in various electronic devices and can be used in a wide range of applications.
  • Status: It has a balance supply and demand status.
