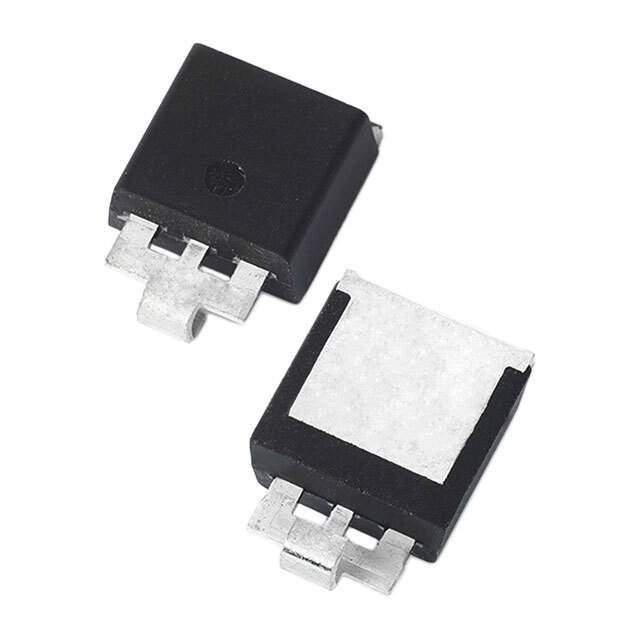

SLD8S22A Real Image
Same model may have multiple batches, images only for reference.

SLD8S22A

Part No SLD8S22A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 22V 35.5V SMTO-263 / The SLD8S Series is SMTO-263 packaged with leaded modification and is designed to provide precision overvoltage protection for sensitive electronics
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Maximum) at Ipp 35.5V
Current - Peak Pulse (10/1000μs) 197A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C
Mounting Style SMD
Manufacturer Package Nonstandard SMD
Supplier Device Package SMTO-263
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804374-SLD8S22A
Ultra Librarian 3D Model Ultra Librarian SLD8S22A CAD Model

Description

The Littelfuse Inc. SLD8S22A is a zener diode.

  • Mounting Style: SMD
  • Packaging: Reel
  • Applications: Automotive
  • Manufacturer Pack Quantity: 500
