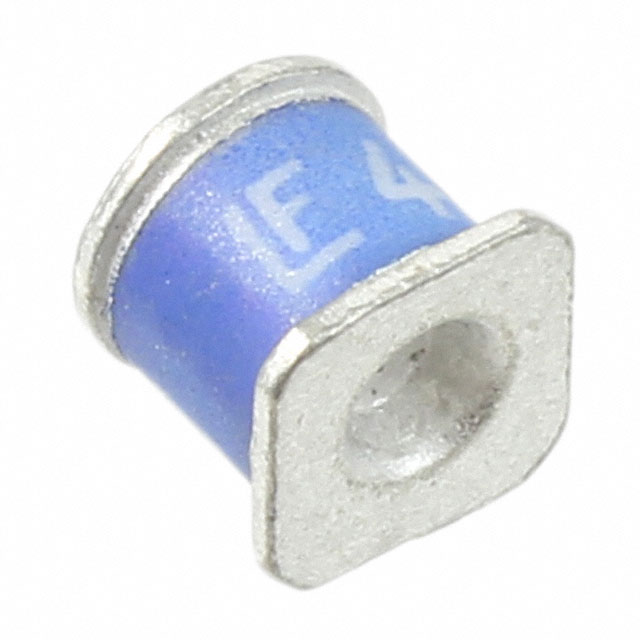

The SL0902A420SM is a surge protection device, specifically a TVS (Transient Voltage Suppressor) diode array, manufactured by Littelfuse Inc. It's designed to protect sensitive electronic circuits from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and other surge events. The 'SM' at the end of the part number typically indicates a surface-mount package.

Applications:

• ESD protection for USB ports.
• Surge protection for Ethernet interfaces.
• Protection of data lines in communication equipment.
• Safeguarding I/O ports in microcontrollers.
• Protection of sensitive analog circuits.

Features:

• Low clamping voltage.
• Fast response time.
• High surge capability.
• Surface mount package.
• Multi-channel protection.
• RoHS compliant.

Benefits:

• Improved system reliability by preventing damage from transient voltage events.
• Reduced downtime and maintenance costs.
• Increased product lifespan.
• Enhanced safety and regulatory compliance.
• Space-saving design due to integrated protection.

Additional Details:

The SL0902A420SM has specific voltage and current handling capabilities, as detailed in the Littelfuse datasheet. The '0902' likely relates to the package style or specific series within Littelfuse's TVS diode arrays. The '420' probably relates to the standoff voltage or a voltage characteristic. It typically utilizes silicon avalanche diode technology for robust surge handling. Proper selection requires careful consideration of the circuit's operating voltage, the expected surge levels, and the maximum acceptable clamping voltage. Often employed in conjunction with other protection components, such as fuses, to create comprehensive circuit protection. Correctly specifying the protection device is essential. Factors to consider include the normal operating voltage of the protected circuit, the expected transient voltage levels, and the maximum allowable clamping voltage. The device is constructed with silicon avalanche technology for robust surge handling.
