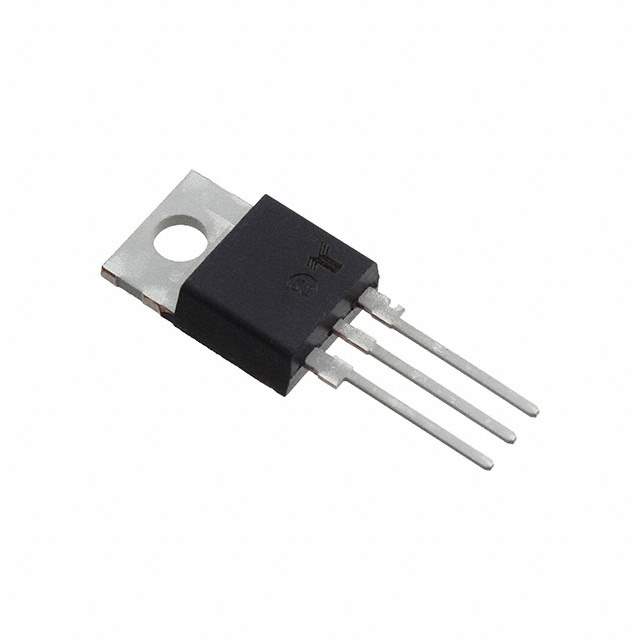

Same model may have multiple batches, images only for reference.

SJ6040R2TP

Name: SJ6040R2TP
Brand: Littelfuse Inc.
SKU: 1278748
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SJ6040R2TP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Series	Teccor®
Package	Tube
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	15 mA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	25 A
Current - On State (It (RMS)) (Max)	40 A
Current - Hold (Ih) (Max)	50 mA
Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	430A, 520A
SCR Type	Sensitive Gate
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
Base Product Number	SJ6040
Other Names	F10115CT,-SJ6040R2TP,F10115,F10115CT,F10115CTINACTIVE
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1278748-SJ6040R2TP
Ultra Librarian 3D Model	Ultra Librarian SJ6040R2TP CAD Model

Description

The Littelfuse Inc. 1278748-SJ6040R2TP is a sensitive gate SCR type thyristor that has a voltage off state of 600 V and an on state current of 25 A.

Voltage Off State: 600 V
On State Current: 25 A
Voltage Gate Trigger (Vgt) (Max): 1.5 V
Current Gate Trigger (Igt) (Max): 15 mA
Current Hold (Ih) (Max): 50 mA
Voltage On State (Vtm) (Max): 1.7 V
Current Off State (Max): 10 µA
Current Non Rep. Surge 50, 60Hz (Itsm): 430A, 520A
Package: TO-220-3
Supplier Device Package: TO-220AB
