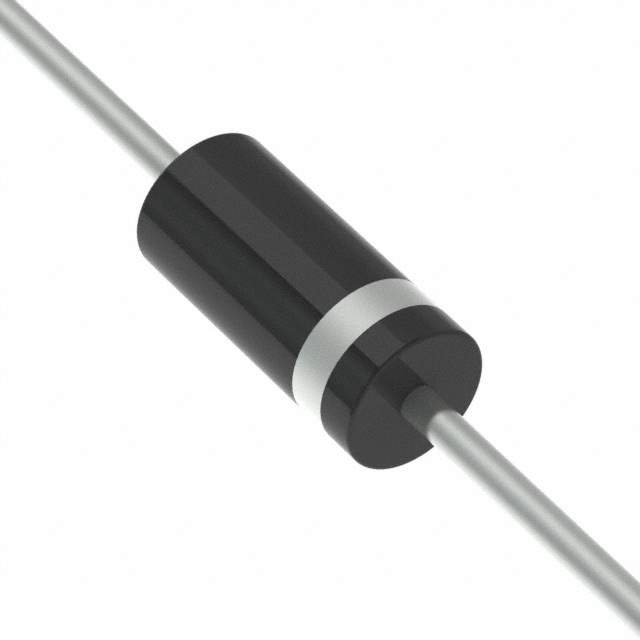

SA7.5A Real Image
Same model may have multiple batches, images only for reference.

SA7.5A

Part No SA7.5A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7.5V 12.9V DO204AC / TRANSZORB Transient Voltage Suppressors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7.5V
Voltage - Breakdown (Min) 8.33V
Voltage - Clamping (Maximum) at Ipp 12.9V
Current - Peak Pulse (10/1000μs) 39.5A
Power - Peak Pulse 500W
Power Line Protection No
Applications Use For General
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804797-SA7.5A
Ultra Librarian 3D Model Ultra Librarian SA7.5A CAD Model

Description

The Littelfuse Inc. SA7.5A is a through-hole Zener diode.

  • Voltage Rating: 7.5V
  • Breakdown Voltage: 8.33V
  • Peak Pulse Current: 39.5A
  • Peak Pulse Power: 500W
  • Package: DO-204AC (DO-15)
  • Clamping Voltage: 12.9V
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 4,000
