Same model may have multiple batches, images only for reference.

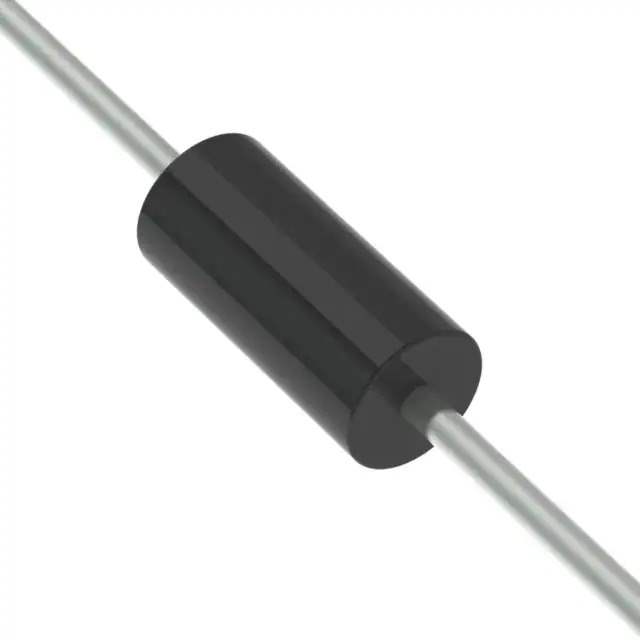

SA45CA Real Image
Same model may have multiple batches, images only for reference.

SA45CA

Part No SA45CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 45VWM 72.7VC DO204AC
Datasheet
SA45CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SA
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 45V
Voltage - Breakdown (Min) 50V
Voltage - Clamping (Max) @ Ipp 72.7V
Current - Peak Pulse (10/1000µs) 7A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 663346-SA45CA
Ultra Librarian 3D Model Ultra Librarian SA45CA CAD Model

Description

The SA45CA is a bidirectional TVS diode from Littelfuse Inc. It is designed to provide protection against transient voltage events in electronic circuits.

  • Type: TVS Diode
  • Polarity: Bidirectional
  • Manufacturer: Littelfuse Inc.
  • Reverse Standoff Voltage: 45V
  • Breakdown Voltage: 50V
  • Clamping Voltage: 72.7V @ 7A peak pulse current
  • Power Rating: 500W
  • Application: General Purpose
  • Mounting: Through-Hole
  • Package: DO-204AC (DO-15)
  • Status: Active
  • Compliance: RoHS
