Same model may have multiple batches, images only for reference.

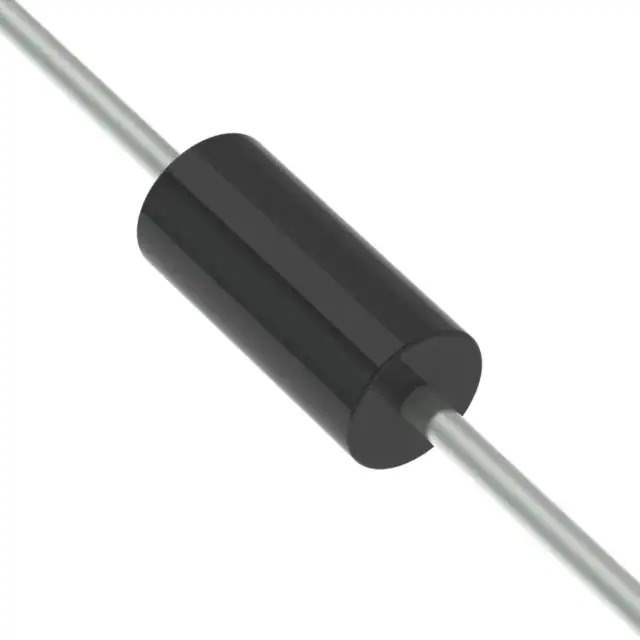

SA11CA Real Image
Same model may have multiple batches, images only for reference.

SA11CA

Part No SA11CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 11VWM 18.2VC DO204AC
Datasheet
SA11CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SA
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 11V
Voltage - Breakdown (Min) 12.2V
Voltage - Clamping (Max) @ Ipp 18.2V
Current - Peak Pulse (10/1000µs) 28A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 663304-SA11CA
Ultra Librarian 3D Model Ultra Librarian SA11CA CAD Model

Description

The SA series Zener TVS diode, part number 663304-SA11CA, is a circuit protection component designed for general-purpose applications.

  • Component Type: Zener TVS diode
  • Series: SA
  • Part Number: 663304-SA11CA
  • Application: General-purpose circuit protection
  • Package: DO-204AC (DO-15) axial
  • Packaging: Tape and reel (TR) or cut tape (CT)
  • Reverse Standoff Voltage: 11V
  • Breakdown Voltage: 12.2V
  • Clamping Voltage: 18.2V @ peak pulse current of 28A
  • Power Peak Pulse Rating: 500W
  • Mounting: Through-hole
  • Operating Temperature: -55°C to 175°C (TJ)
  • Manufacturer: Littelfuse Inc.
  • Status: Active product
  • Note: Not intended for power line protection.
