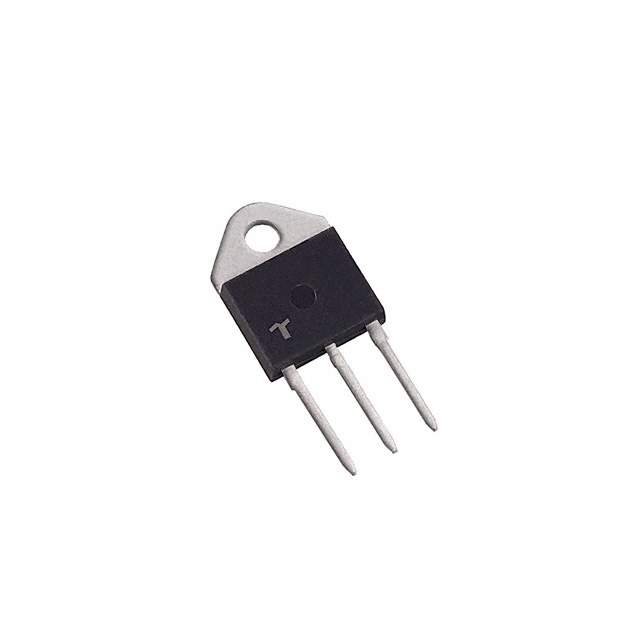

S8065K Real Image
Same model may have multiple batches, images only for reference.

S8065K

Part No S8065K
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR ISOLATED 800V 65A TO-218
Datasheet
S8065K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube/Rail
Status Active
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Max) 2V
Current - Gate Trigger (Igt) (Max) 50mA
Voltage - On State (Vtm) (Max) 1.8V
Current - On State (It (AV)) (Max) 41A
Current - On State (It (RMS)) (Max) 65A
Current - Hold (Ih) (Max) 80mA
Current - Off State (Max) 20μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 800A, 950A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Case / Package TO-218 Isolated Tab
Win Source Part Number 308236-S8065K
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S8065K CAD Model

Description

The Littelfuse Inc. S8065K is a standard recovery SCR type discrete semiconductor product.

  • supply and demand status: currently limited
  • mounting: through hole
  • Maximum current hold: 80mA
  • Maximum voltage off state: 800V
  • Maximum gate trigger voltage: 2V
  • Maximum gate trigger current: 50mA
  • Suitable for use: a wide range of applications
  • maximum on state current: 41A (It (AV))
  • maximum on state RMS current: 65A (It (RMS))
  • maximum non-repetitive surge current: 800A (50Hz)
  • maximum non-repetitive surge current: 950A (60Hz)
  • maximum on state voltage: 1.8V
  • package: TO-218 Isolated Tab case/package
  • operating temperature range: -40°C to 125°C
