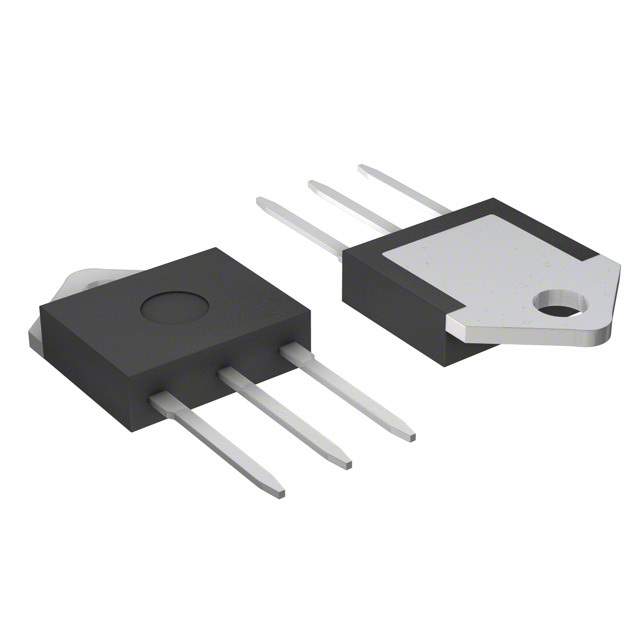

Same model may have multiple batches, images only for reference.

S8055MTP

Name: S8055MTP
Brand: Littelfuse Inc.
SKU: 972263
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S8055MTP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Description	SCR 800V 55A TO218 / SCR 800 V 55 A Standard Recovery Through Hole TO-218 Non-Isolated Tab
Datasheet	S8055MTP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Package	Tube
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA
Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3, TO-218AC
Supplier Device Package	TO-218 Non-Isolated Tab
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Other Names	-1024-S8055MTP
Standard Package	250
Win Source Part Number	972263-S8055MTP
Ultra Librarian 3D Model	Ultra Librarian S8055MTP CAD Model

Description

The S8055MTP is a thyristor-SCR product with a Win Source Part Number of 972263.

Win Source Part Number: 972263
Mounting Type: Through-Hole
Packaging: Tube
Maximum Voltage: 800V
Maximum Current: 35A
Current Hold: 60 mA
Gate Trigger Voltage: 1.5V
