The S8055M is an electronic component in the Discrete Semiconductor Products category.

• Type: thyristor-SCR

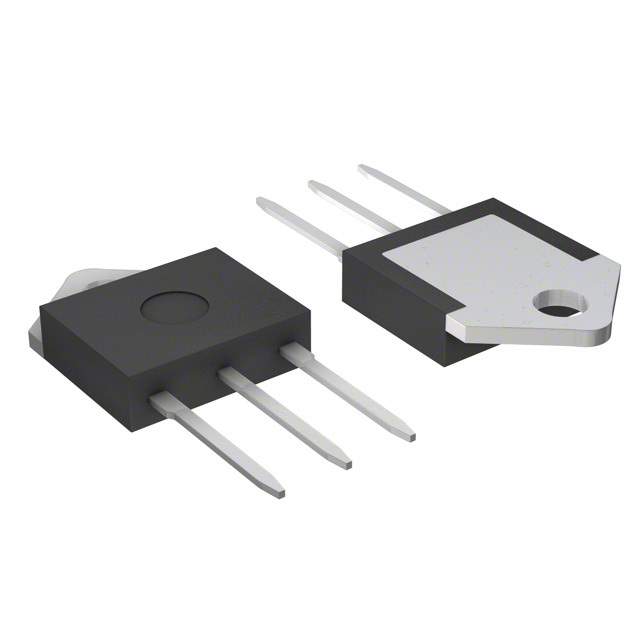

• Package: TO-218-3, TO-218AC
• Supplier Device Package: TO-218 Non-Isolated Tab
• Standard Package: 250
• Current - Hold (Ih) (Max): 60 mA
• Voltage - Off State: 800 V
• Voltage - Gate Trigger (Vgt) (Max): 1.5 V
• Current - Gate Trigger (Igt) (Max): 40 mA
• Voltage - On State (Vtm) (Max): 1.8 V
• Current - On State (It (AV)) (Max): 35 A
• Current - On State (It (RMS)) (Max): 55 A
• Current - Off State (Max): 20 µA
• Current - Non rep. surge 50, 60Hz (Itsm): 550A, 650A
• Mounting Type: through hole
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• HTSUS code: 8541.30.0080
• Status: obsolete
• Manufacturer: Littelfuse Inc.
