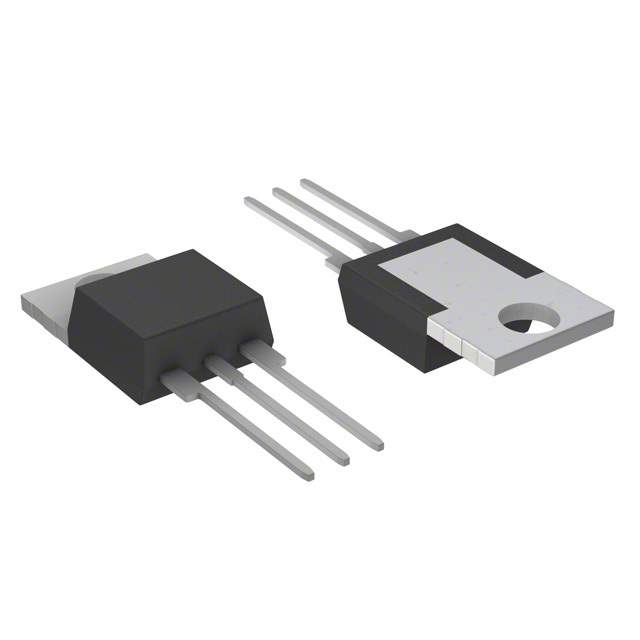

S8015LTP

Name: S8015LTP
Brand: Littelfuse Inc.
SKU: 1278759
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S8015LTP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Datasheet	S8015LTP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Series	Sxx15x
Package	Tube
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	9.5 A
Current - On State (It (RMS)) (Max)	15 A
Current - Hold (Ih) (Max)	40 mA
Current - Off State (Max)	20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	188A, 225A
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
Other Names	-1024-S8015LTP,F9728
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1278759-S8015LTP
Ultra Librarian 3D Model	Ultra Librarian S8015LTP CAD Model

Description

The Sxx15x series thyristor from Littelfuse Inc. is a standard recovery SCR that comes in a TO-220-3 full pack, isolated tab package.

Voltage Off State: 800 V
Voltage Gate Trigger: 1.5 V
Maximum Current Hold: 40 mA
Maximum Current On State (It (AV)): 9.5 A
Maximum Current Non-Rep. Surge 50, 60Hz (Itsm): 188A, 225A
Mounting: through-hole
Operating Temperature Range: -40°C to 125°C (TJ)
