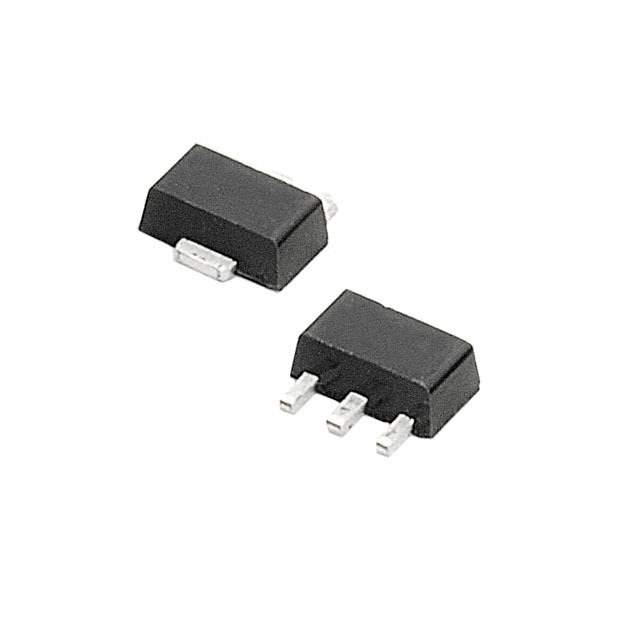

S6X8BS1RP Real Image
Same model may have multiple batches, images only for reference.

S6X8BS1RP

Part No S6X8BS1RP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR 600V 800MA SOT89 / SCR 600 V 800 mA Sensitive Gate Surface Mount SOT-89
Datasheet
S6X8BS1RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Tape & Reel (TR)
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 5 µA
Voltage - On State (Vtm) (Max) 1.7 V
Current - On State (It (AV)) (Max) 510 mA
Current - On State (It (RMS)) (Max) 800 mA
Current - Hold (Ih) (Max) 5 mA
Current - Off State (Max) 3 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8A, 10A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names -S6X8BS1RP
Standard Package 1,000
Win Source Part Number 1090294-S6X8BS1RP
Ultra Librarian 3D Model Ultra Librarian S6X8BS1RP CAD Model

Description

The Littelfuse Inc. S6X8BS1RP is a sensitive gate SCR (silicon-controlled rectifier) that is widely used in various electronic circuits.

  • Manufacturer: Littelfuse Inc.
  • Type: Sensitive Gate SCR
  • Current Rating: 510 mA
  • Voltage Rating: 600 V
  • Operating Temperature: -40°C to 125°C
  • Package/Case: TO-243AA
  • Supplier Device Package: SOT-89
  • Current Hold (Ih): 5 mA
  • Voltage Gate Trigger (Vgt): 800 mV
  • Current Gate Trigger (Igt): 5 µA
  • Voltage On State (Vtm): 1.7 V
  • Current Off State (Max): 3 µA
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 8A, 10A
  • Reliability: Highly reliable and suitable for various electronic applications.
