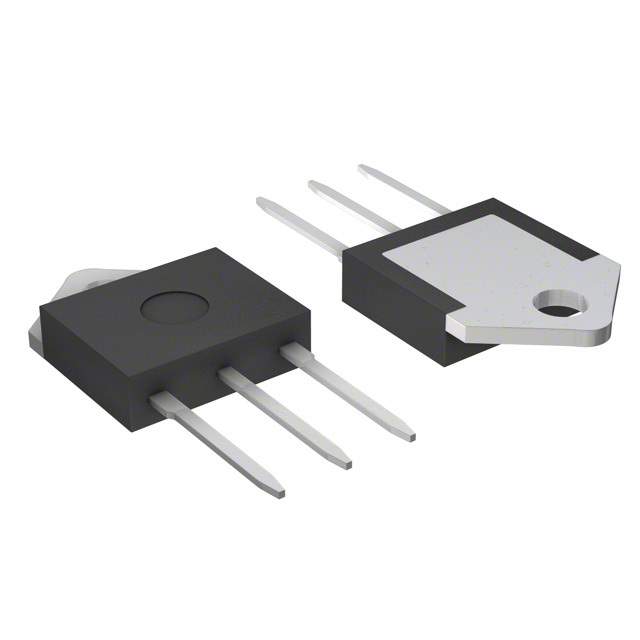

Same model may have multiple batches, images only for reference.

S6055MTP

Name: S6055MTP
Brand: Littelfuse Inc.
SKU: 1278854
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S6055MTP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Datasheet	S6055MTP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Package	Tube
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA
Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3, TO-218AC
Supplier Device Package	TO-218-3
Other Names	-S6055MTP
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1278854-S6055MTP
Ultra Librarian 3D Model	Ultra Librarian S6055MTP CAD Model

Description

The Littelfuse Inc. 1278854-S6055MTP is a thyristor SCR with a current rating of 35 A and a voltage rating of 600 V.

Current Rating: 35 A
Voltage Rating: 600 V
Current Hold: 60 mA
Voltage Gate Trigger: 1.5 V
SCR Type: Standard Recovery
Mounting Type: Through Hole
Package/Case: TO-218-3 and TO-218AC
Operating Temperature Range: -40°C to 125°C
MSL Level: 1 (unlimited)
HTSUS: 8541.30.0080
