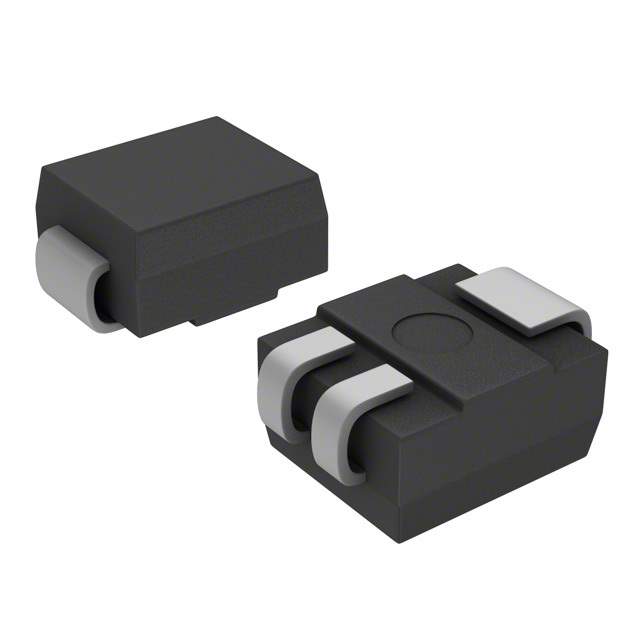

S4S1RP Real Image
Same model may have multiple batches, images only for reference.

S4S1RP

Part No S4S1RP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR SENS GATE 400V 0.8A SMT
Datasheet
S4S1RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 12μA
Voltage - On State (Vtm) (Max) 1.7V
Current - On State (It (AV)) (Max) 510mA
Current - On State (It (RMS)) (Max) 800mA
Current - Hold (Ih) (Max) 5mA
Current - Off State (Max) 1μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 16A, 20A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package Compak
Win Source Part Number 027850-S4S1RP
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S4S1RP CAD Model

Description

The 027850-S4S1RP is a sensitive gate SCR type component manufactured by Littelfuse Inc.

  • Quality: high-quality and reliable component
  • Category: Discrete Semiconductor Products
  • Popularity: medium
  • Supply and demand status: sufficient
  • Cost-effective solution: can help you to achieve your design goals with ease
  • Current hold (Ih) (Max): 5mA
  • Voltage off state: 400V
  • Voltage gate trigger (Vgt) (Max): 800mV
