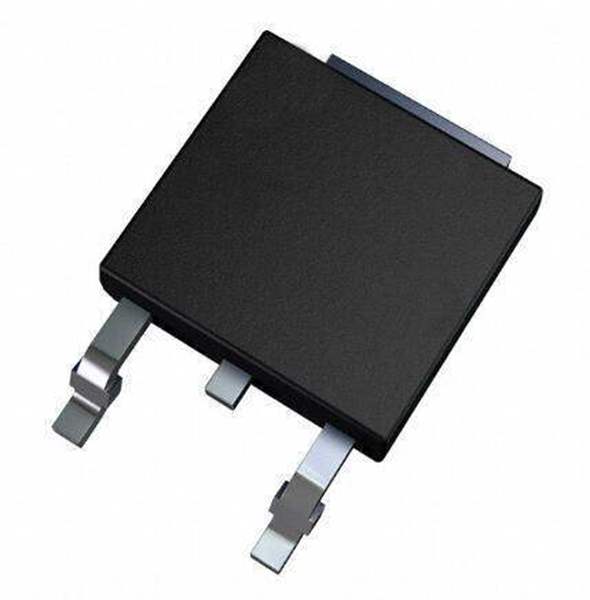

S4004DS2RPLittelfuse Inc.
Same model may have multiple batches, images only for reference.

S4004DS2RP

Part No S4004DS2RP
Manufacturer Littelfuse Inc.
Catalog Thyristors—SCRs
Description SCR 400V 4A TO252
Datasheet
S4004DS2RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Littelfuse Inc.
Category Discrete Semiconductor Products Thyristors SCRs
Part Status Active
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 2.5 A
Current - Hold (Ih) (Max) 6 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 25A, 30A
Operating Temperature -40°C ~ 110°C
Mounting Type Surface Mount
Win Source Part Number WS1305783-S4004DS2RP
Ultra Librarian 3D Model Ultra Librarian S4004DS2RP CAD Model

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
