Same model may have multiple batches, images only for reference.

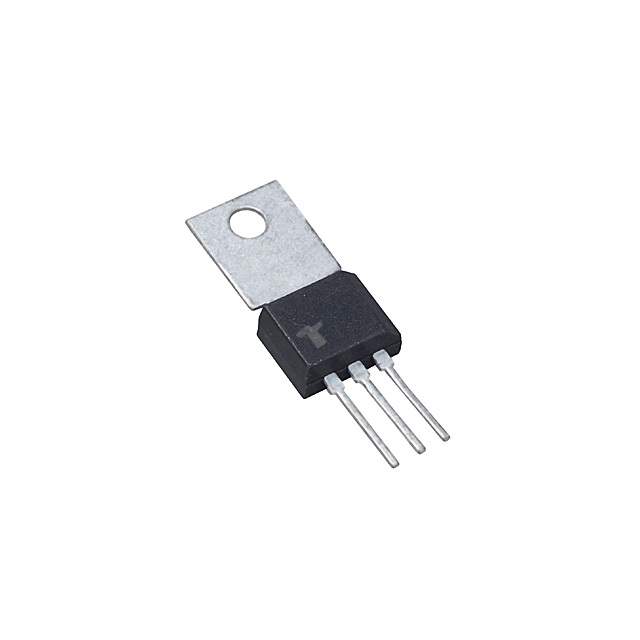

S2006FS31 Real Image
Same model may have multiple batches, images only for reference.

S2006FS31

Part No S2006FS31
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S2006FS31 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 500 µA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 3.8 A
Current - On State (It (RMS)) (Max) 6 A
Current - Hold (Ih) (Max) 8 mA
Current - Off State (Max) 5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-202 Long Tab
Supplier Device Package TO-202
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278976-S2006FS31
Ultra Librarian 3D Model Ultra Librarian S2006FS31 CAD Model

Description

The 1278976-S2006FS31 from Littelfuse Inc. is an obsolete thyristor SCR device that is sensitive gate type.

  • Mounting Type: Through-Hole
  • Package/Case: TO-202 long tab
  • Voltage-Off State: 200V
  • Voltage-Gate Trigger (Vgt): 800mV
  • Current-Gate Trigger (Igt): 500 μA
  • Voltage-On State (Vtm): 1.6V
  • Current-On State (It (AV)): 3.8A
  • Current-On State (It (RMS)): 6A
  • Current-Off State (Max): 5 μA
  • Current-Non Rep. Surge 50, 60Hz (Itsm): 83A, 100A
  • HTSUS Code: 8541.30.0080
