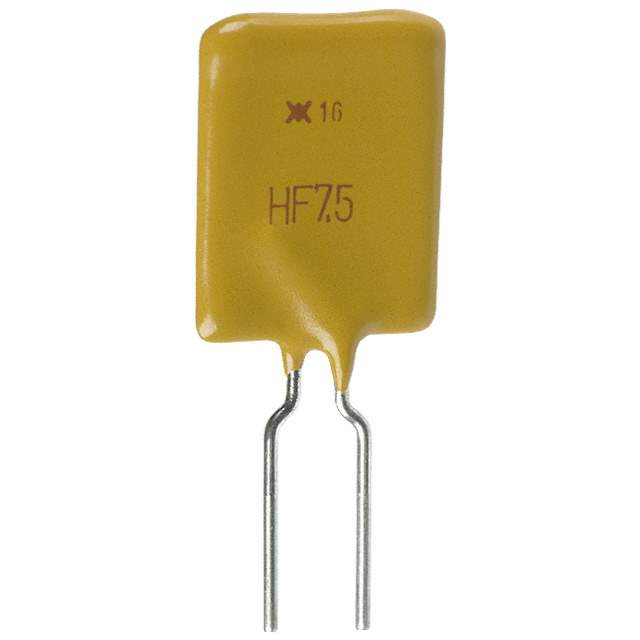

RHEF750 Real Image
Same model may have multiple batches, images only for reference.

RHEF750

Part No RHEF750
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 7.5A RADIAL / PolySwitch™ Resettable Device Short Form Catalog
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 7.5A
Current - Trip (It) 13.1A
Time to Trip 7s
Resistance - Initial (Ri) (Min) 9.4 mOhms
Resistance - Post Trip (R1) (Maximum) 22 mOhms
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Maximum) 0.925" (23.50mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800775-RHEF750
Ultra Librarian 3D Model Ultra Librarian RHEF750 CAD Model

Description

This Littelfuse Inc. Polymeric fuse is an electronic component.

  • Voltage Rating: 16V
  • Maximum Current Rating: 100A
  • Current Trip Rating: 13.1A
  • Time to Trip: 7 seconds
  • Lead Spacing: 0.199" (5.05mm)
  • Mounting Type: Through Hole
  • Manufacturer Package: Radial, Disc
  • Initial Resistance: 9.4 mOhms
  • Post-Trip Resistance: 22 mOhms
  • Approvals: CSA, TUV, UL
  • Manufacturer Pack Quantity: 500
