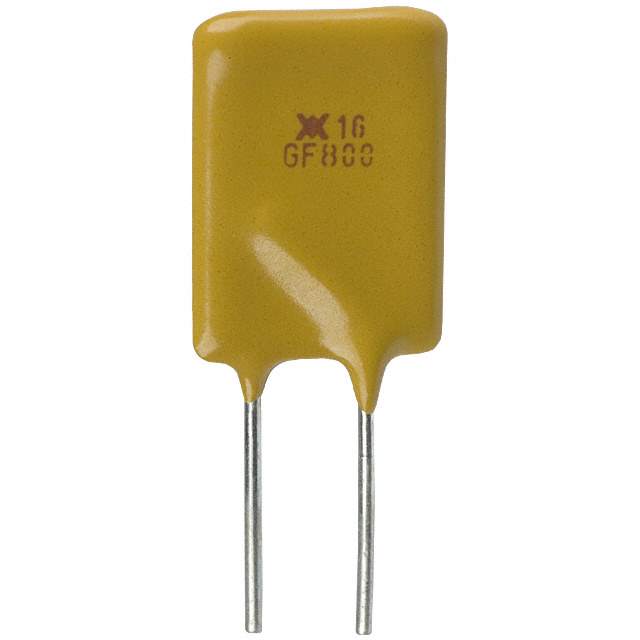

The RGEF800 is a polymeric circuit protection component manufactured by Littelfuse Inc.

• Supply and Demand: The RGEF800 is a limited supply and demand component
• Manufacturer Pack Quantity: with a manufacturer pack quantity of 500.
• Mounting: It is a through-hole mounted component
• Approvals: with CSA, TUV, and UL approvals.
• Voltage Max: The RGEF800 has a voltage max of 16V
• Current Max: and a current max of 100A.
• Current Trip (It): Its current trip (It) is 13.6A
• Time to Trip: and its time to trip is 5s.
• Resistance - Initial (Ri) (Minimum): The RGEF800 has a resistance - initial (Ri) (Minimum) of 5.6 mOhms
• Resistance - Post Trip (R1) (Maximum): and a resistance - post trip (R1) (Maximum) of 17.5 mOhms.
• Operating Temperature: It can operate in a temperature range of -40°C to 85°C
• Package: and comes in a radial, disc package.
