Same model may have multiple batches, images only for reference.

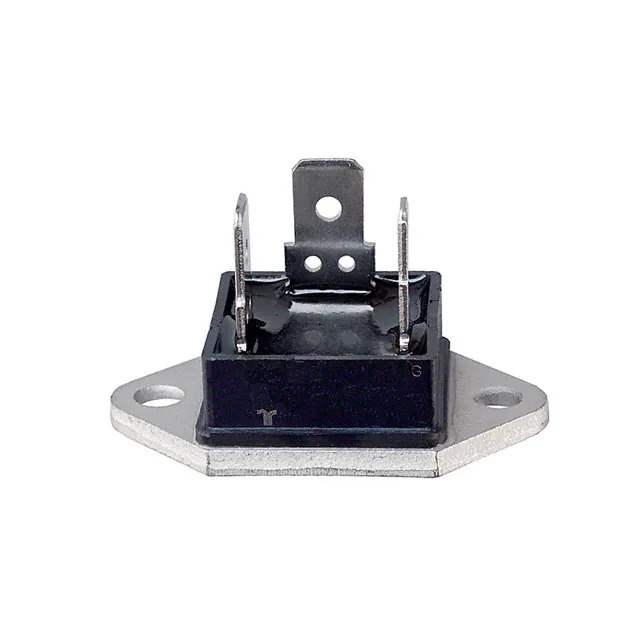

Q6025P5 Real Image
Same model may have multiple batches, images only for reference.

Q6025P5

Part No Q6025P5
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC 600V 25A TO-3
Datasheet
Q6025P5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - TRIACs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Triac Type Standard
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 25 A
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 220A, 250A
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Hold (Ih) (Max) 50 mA
Configuration Single
Temperature Range - Operating -25°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Fastpak, TO-3 Base
Supplier Device Package TO-3/TO-239 (Fastpak)
Base Product Number Q6025
Standard Package 160 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 848530-Q6025P5
Ultra Librarian 3D Model Ultra Librarian Q6025P5 CAD Model

Description

The Q6025P5 is a single configuration thyristor TRIAC designed for high-performance applications. With a voltage-off state of 600V and a voltage gate trigger of 1.3V, this TRIAC provides efficient switching capabilities.

  • Voltage-Off State: 600V
  • Voltage Gate Trigger: 1.3V
  • Current Hold: 50mA
  • Current On State: 25A
  • Non-Repetitive Surge Current (50Hz): 220A
  • Non-Repetitive Surge Current (60Hz): 250A
  • Mounting Type: Chassis mount
  • Package: Fastpak, TO-3 base
  • Operating Temperature Range: -25°C to 125°C
  • Status: Obsolete
  • Standard Package: 160 pcs
