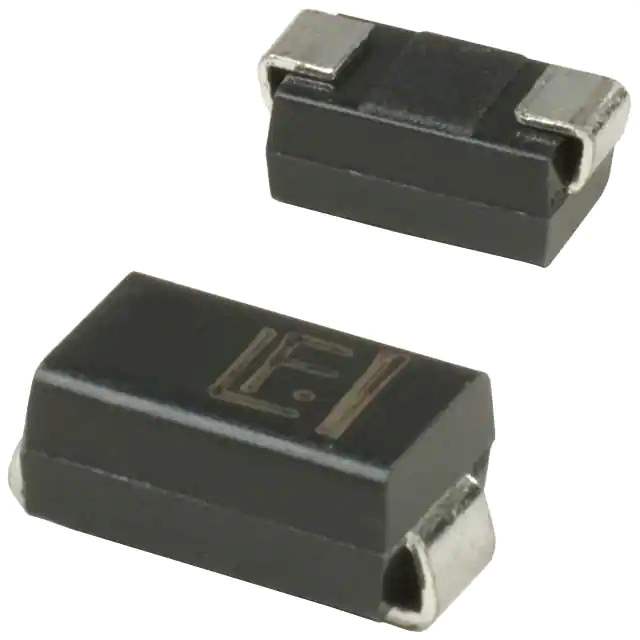

P4SMA56CA

Name: P4SMA56CA
Brand: Littelfuse Inc.
SKU: 651789
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	P4SMA56CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 47.8VWM 77VC DO214AC / 77V Clamp 5.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Datasheet	P4SMA56CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	P4SMA
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	5.3A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	651789-P4SMA56CA
Ultra Librarian 3D Model	Ultra Librarian P4SMA56CA CAD Model

Alternative Products

Description

The P4SMA56CA is a Zener-type TVS Diode designed for general-purpose circuit protection against electrostatic discharge (ESD) and other transients.

Series: P4SMA series
Package: DO-214AC (SMA)
Reverse Standoff Voltage: 47.8V
Breakdown Voltage: 53.2V
Protection: Bidirectional
Clamping Voltage: 77V @ a peak pulse power of 400W
Peak Pulse Current: 5.3A
Mounting: Surface mountable
Temperature Range: -65°C to 150°C
Manufacturer: Littelfuse Inc.
Status: Active
