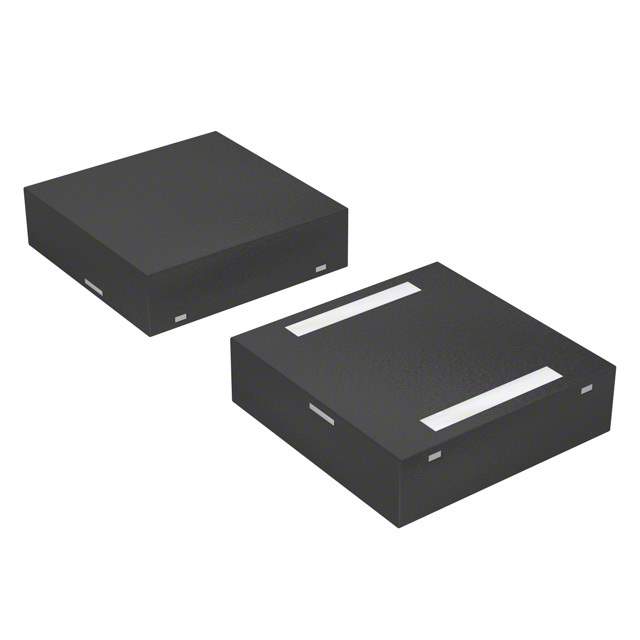

P3500Q22CLRP Real Image
Same model may have multiple batches, images only for reference.

P3500Q22CLRP

Part No P3500Q22CLRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 400V 400A QFN SMD
Datasheet
P3500Q22CLRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Breakover 400V
Voltage - Off State 320V
Voltage - On State 5V
Current - Peak Pulse (8/20μs) 400A
Peak Pulse Current(Ippm) 100A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 40pF
Mounting SMD (SMT)
Dimension 2-TDFN
Win Source Part Number 106100-P3500Q22CLRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P3500Q22CLRP CAD Model

Description

The P3500Q22CLRP is a circuit protection device manufactured by Littelfuse Inc.

  • Capacitance: 40pF
  • Voltage Off State: 320V
  • Voltage Breakover: 400V
  • Voltage On State: 5V
  • Peak Pulse Current: 400A
  • Current Hold: 150mA
  • Mounting: Surface Mount Device
  • Package: 2-TDFN
  • Application: Electronic circuits
  • Popularity: Medium
