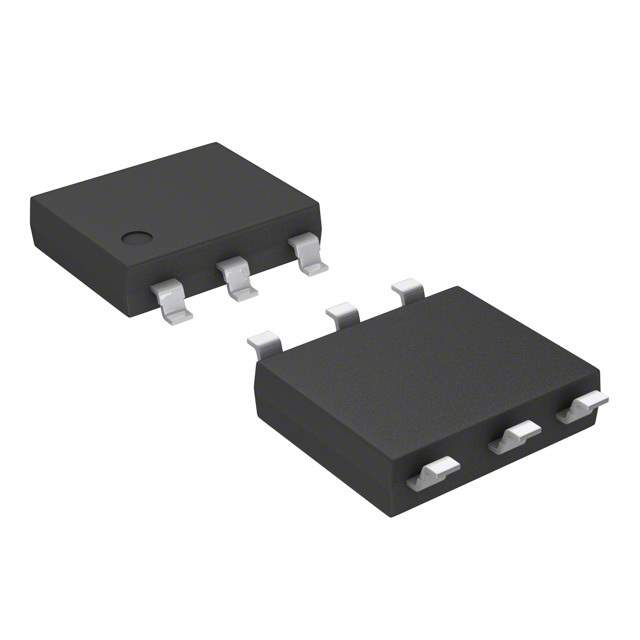

P2304UCMCLRP Real Image
Same model may have multiple batches, images only for reference.

P2304UCMCLRP

Part No P2304UCMCLRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description THYRISTOR 190V/380V 400A 6SMD GW / 190V, 380V Off-State 400 A Ipp TVS Thyristor 6-SMD, Gull Wing
Datasheet
P2304UCMCLRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Littelfuse Inc.
Series SIDACtor®
Package Tape & Reel (TR)
Voltage - Breakover 260V, 520V
Voltage - Off State 190V, 380V
Voltage - On State 8 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 150 mA
Number of Elements 4
Capacitance 30pF, 50pF
Mounting SMD (SMT)
Package / Case 6-SMD, Gull Wing
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names P2304UCMCL,-P2304UCMCLRP
Standard Package 1,500
Win Source Part Number 1083518-P2304UCMCLRP
Ultra Librarian 3D Model Ultra Librarian P2304UCMCLRP CAD Model

Description

The Littelfuse Inc. P2304UCMCLRP is a circuit protection component that belongs to the SIDACtor series.

  • Win Source Part Number: 1083518-P2304UCMCLRP
  • Package: Tape and reel
  • Standard Package Quantity: 1,500 units
  • Capacitance: 30pF or 50pF
  • Voltage-Off State: 190V or 380V
  • Voltage-Breakover: 260V or 520V
  • Voltage-On State: 8V
  • Current-Hold: 150mA
  • Current-Peak Pulse: 100A or 400A
  • Component Type: SMD (SMT)
  • Package/Case: 6-SMD, Gull Wing
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.30.0080
  • Manufacturer: Littelfuse Inc.
