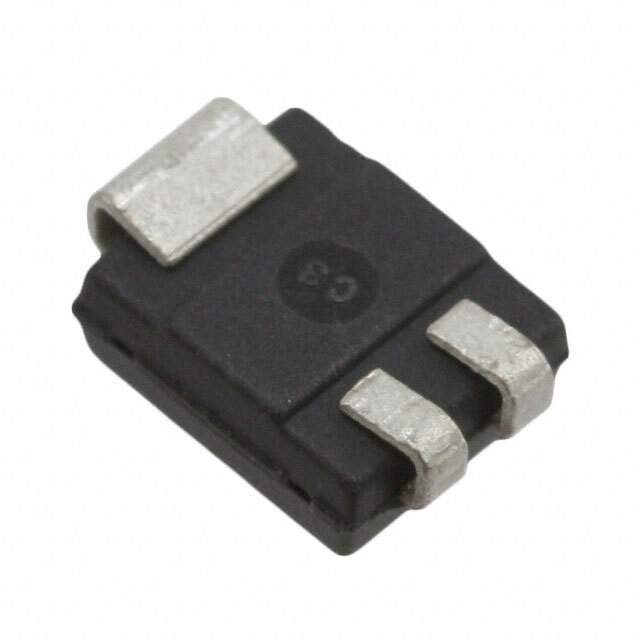

P2202CALRP Real Image
Same model may have multiple batches, images only for reference.

P2202CALRP

Part No P2202CALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 180V 150A DO214
Datasheet
P2202CALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Breakover 130V, 260V
Voltage - Off State 90V, 180V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 45A
Current - Hold (Ih) 120mA
Number of Elements 2
Capacitance 30pF, 50pF
Mounting SMD (SMT)
Dimension DO-214AA, SMB (3 Leads), Compak
Win Source Part Number 1085411-P2202CALRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P2202CALRP CAD Model

Description

The Littelfuse Inc. P2202CALRP is a surface mount (SMD) mounted circuit protection device with capacitance of 30pF and 50pF.

  • Manufacturer: Littelfuse Inc.
  • Mounting Type: Surface Mount (SMD)
  • Capacitance: 30pF and 50pF
  • Number of Elements: Two
  • Voltage-Off State: 90V and 180V
  • Voltage-Breakover: 130V and 260V
  • Voltage-On State: 4V
  • Current-Peak Pulse (8/20μs): 150A
  • Current-Hold (Ih): 120mA
  • Supply and Demand Status: Balanced
  • Peak Pulse Current(Ippm): 45A
