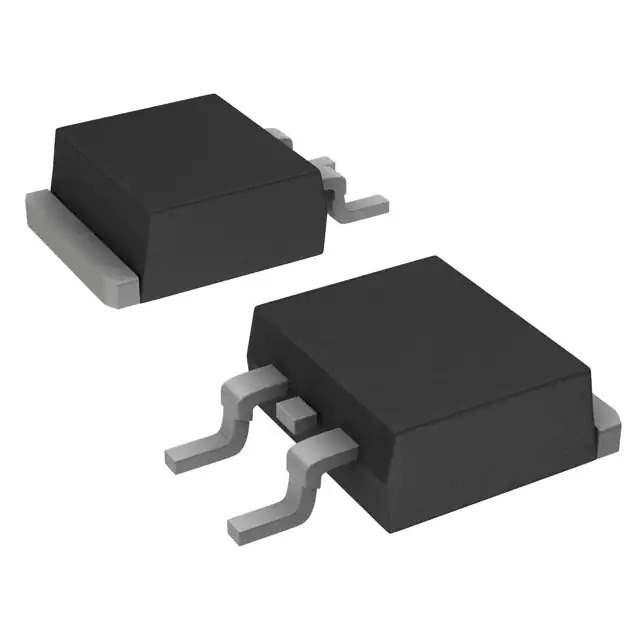

NGB8207ABNT4G

Name: NGB8207ABNT4G
Brand: Littelfuse Inc.
SKU: 648448
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NGB8207ABNT4G
Manufacturer	Littelfuse Inc.
Catalog	IGBTs - Single
Description	IGBT 365V 20A D2PAK
Datasheet	NGB8207ABNT4G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Littelfuse Inc.
Package	Tape & Reel
Product Status	Active
Voltage - Collector Emitter Breakdown (Max)	365 V
Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	50 A
Vce(on) (Max) @ Vge, Ic	2.2V @ 3.7V, 10A
Power - Max	165 W
Input Type	Logic
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
Base Product Number	NGB8207A
Standard Package	800 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	648448-NGB8207ABNT4G
Ultra Librarian 3D Model	Ultra Librarian NGB8207ABNT4G CAD Model

Description

The 648448-NGB8207ABNT4G is a single IGBT transistor from Littelfuse Inc.

Type: IGBT Transistor
Configuration: Single
Mounting Type: Surface Mount
Package: Tape and Reel
Power: 165W (Maximum)
Collector-Emitter Breakdown Voltage: 365V
Collector Current: 20A (Maximum)
Collector Current (Pulsed): 50A (Maximum)
On-State Voltage Drop: 2.2V @ Gate-Emitter Voltage of 3.7V and Collector Current of 10A
Input Type: Logic
Operating Temperature: -55°C to 175°C
Product Status: Active
REACH: Not Affected
