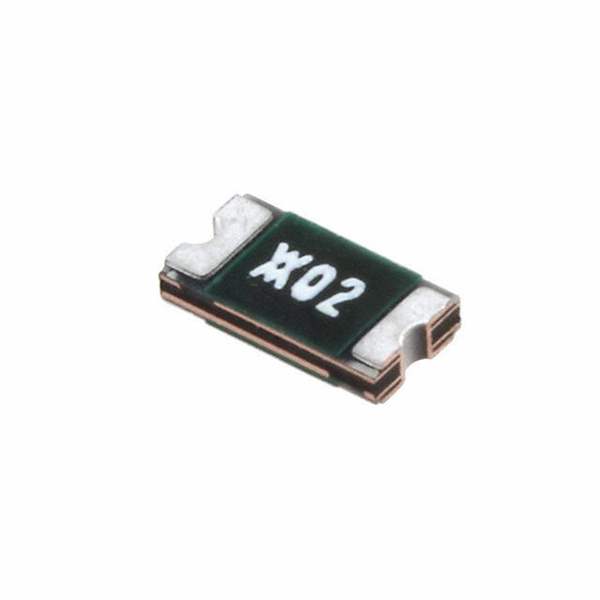

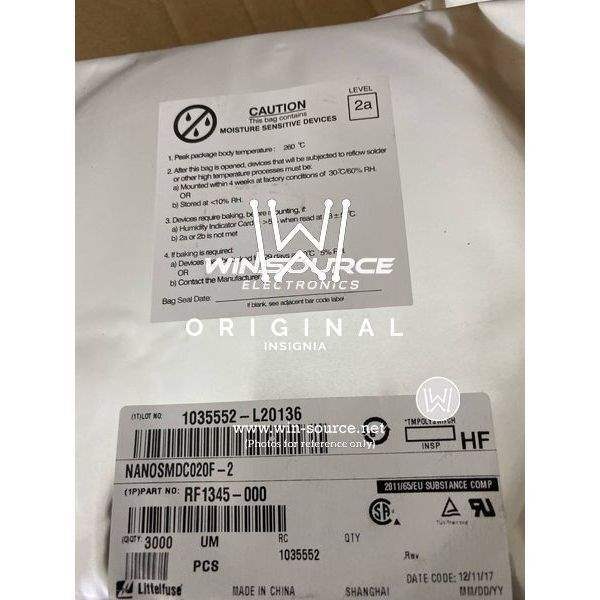

NANOSMDC020F-2 Littelfuse Inc. NANOSMDC020F-2 Real Image NANOSMDC020F-2 label picture
Same model may have multiple batches, images only for reference.
NANOSMDC020F-2 Littelfuse Inc. NANOSMDC020F-2 Real Image NANOSMDC020F-2 label picture
NANOSMDC020F-2 Littelfuse Inc. NANOSMDC020F-2 Real Image NANOSMDC020F-2 label picture
Same model may have multiple batches, images only for reference.

NANOSMDC020F-2

Part No NANOSMDC020F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH RESET .2A 24V SMD
Datasheet
NANOSMDC020F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 100A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 420mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 650 mOhm
Resistance - Post Trip (R1) (Max) 3.1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.59mm)
Thickness (Max) 0.028" (0.70mm)
Approvals CSA, TUV, UL
Win Source Part Number 105381-NANOSMDC020F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Communications & Networking, Automotive
Ultra Librarian 3D Model Ultra Librarian NANOSMDC020F-2 CAD Model

Description

The Littelfuse Inc. NANOSMDC020F-2 is a surface mount, polymeric resettable fuse with a voltage rating of 24V and a maximum current of 100A.

  • Voltage Rating: 24V
  • Maximum Current: 100A
  • Initial Resistance: 650 mOhm
  • Post-Trip Resistance: 3.1 Ohm
  • Applications: industrial, computers & computer peripherals, consumer electronics, imaging, video & vision, communications & networking, and automotive applications.
  • Operating Temperature: -40°C to 85°C
  • Approvals: CSA, TUV, and UL
  • Supply and Demand Status: sufficient
  • Packaging: reel - TR
