Same model may have multiple batches, images only for reference.

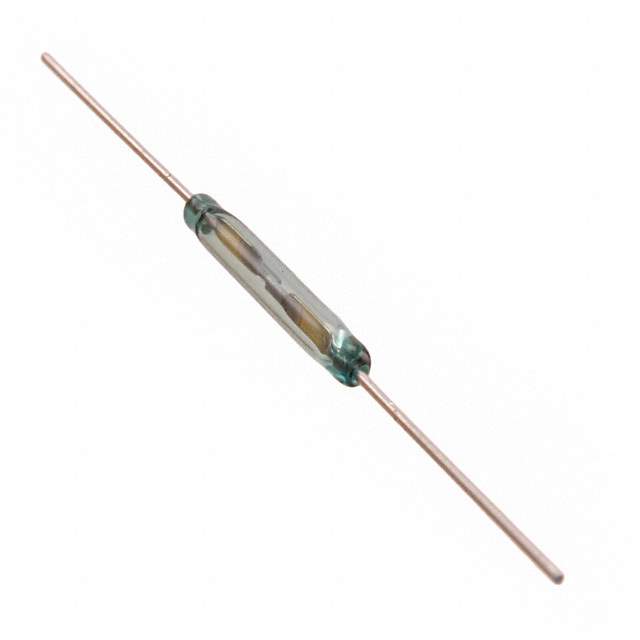

MRPR-3-22-38 Real Image
Same model may have multiple batches, images only for reference.

MRPR-3-22-38

Part No MRPR-3-22-38
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 1.1A 140V
Datasheet
MRPR-3-22-38 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Glass Body
Circuit SPST-NO
Operate Range 22 to 38AT
Current - Switching 1.1A (AC), 1.5A (DC)
Voltage - Switching AC 140V
Voltage - Switching DC 200V
Power - Rated 50W
Operate Time 0.75ms
Release Time 0.3ms
Mounting Through Hole
Termination Style Axial
Length - Overall 2.230" (56.64mm)
Size - Body 0.112" Dia x 0.775" L (2.84mm x 19.69mm)
Temperature Range - Operating -40°C to 125°C
Capacitance 0.2pF
Current - Carry 3A (DC)
Win Source Part Number 1079820-MRPR-3-22-38
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MRPR-3-22-38 CAD Model

Description

The MRPR-3-22-38 is a glass body switch with a SPST-NO circuit and an operate range of 22 to 38AT from Littelfuse Inc.

  • Circuit: SPST-NO
  • Operate Range: 22 to 38AT
  • Maximum Power Rating: 50W
  • Switching Current (AC): 1.1A
  • Switching Current (DC): 1.5A
  • Mounting Style: Through-hole
  • Termination Style: Axial
  • Capacitance: 0.2pF
  • Operate Time: 0.75ms
  • Operating Temperature Range: -40°C to 125°C
