Same model may have multiple batches, images only for reference.

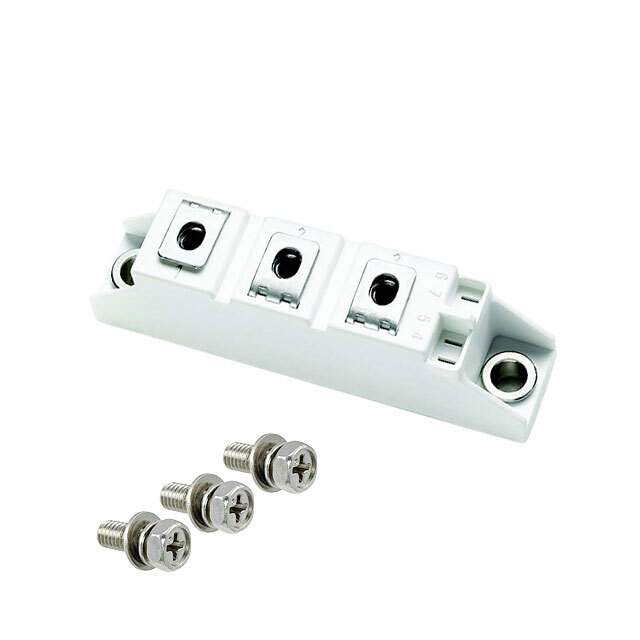

MD1690A-BM2MM Real Image
Same model may have multiple batches, images only for reference.

MD1690A-BM2MM

Part No MD1690A-BM2MM
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE GP 1600V 90A A3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 13 Weeks
Features Diode Array 1 Pair Series Connection Standard 1600 V 90A Chassis Mount A-3 Module
Manufacturer Littelfuse Inc.
Package Bulk
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Chassis Mount
Package A-3 Module
Case / Package A3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F6454, -MD1690A-BM2MM
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926869-MD1690A-BM2MM
Ultra Librarian 3D Model Ultra Librarian MD1690A-BM2MM CAD Model

Description

The Littelfuse Inc. 926869-MD1690A-BM2MM is a diode array that offers a standard recovery of >500ns and > 200mA (Io).

  • Recovery Type: Standard (>500ns)
  • Current (Io): > 200mA
  • Voltage Rating (Max): 1600 V
  • Current Rating (Max): 90A
  • Mounting: Chassis Mounting
  • Case/Package: A3 module
  • Packaging: Bulk package of 50
  • Estimated Production Lead Time: 13 weeks
