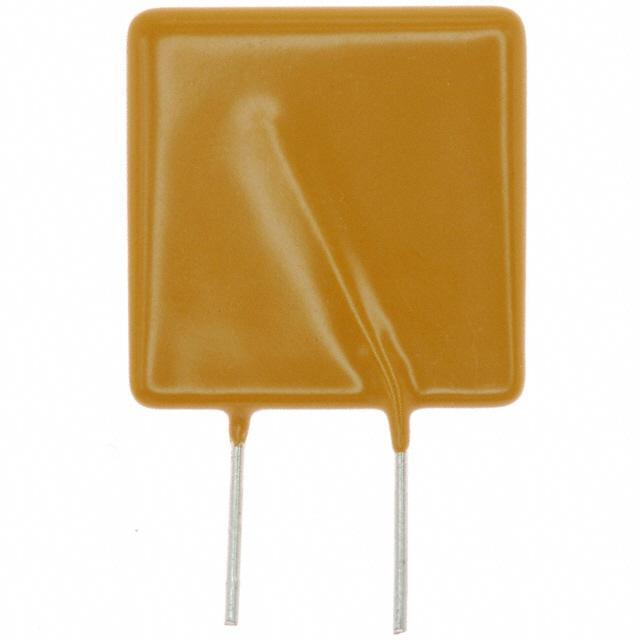

LVRL200 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

LVRL200

Part No LVRL200
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 2A(hold) 4A(trip) 120VAC 3.9W 36s 0.08Ohm Radial 23.5 X 4.1 X 31.8mm Bulk / POLYSWITCH PTC RESET 120V 2.00A
Datasheet
LVRL200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVRL
Packaging Bulk
Part Status Obsolete(EOL)
Type Polymeric
Voltage - Max 120V (135V Int)
Current - Max 20A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 4.2A
Time to Trip 36s
Resistance - Initial (Ri) (Minimum) 80 mOhm
Resistance - Post Trip (R1) (Maximum) 210 mOhm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.925" L x 0.161" W (23.50mm x 4.10mm)
Height - Seated (Maximum) 1.250" (31.80mm)
Lead Spacing 0.400" (10.15mm)
Approvals CSA, TUV, UL
Win Source Part Number 784751-LVRL200
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LVRL200 CAD Model

Description

The Littelfuse Inc. LVRL200 is an obsolete, limited-supply electronic component. Littelfuse Inc.

  • Series: LVRL
  • Type: Polymeric
  • Mounting: Through-hole
  • Maximum Voltage: 120V (135V Int)
  • Maximum Current: 20A
  • Time to Trip: 36s
  • Current - Trip (It): 4.2A
  • Manufacturer Homepage: www.littelfuse.com
