Same model may have multiple batches, images only for reference.

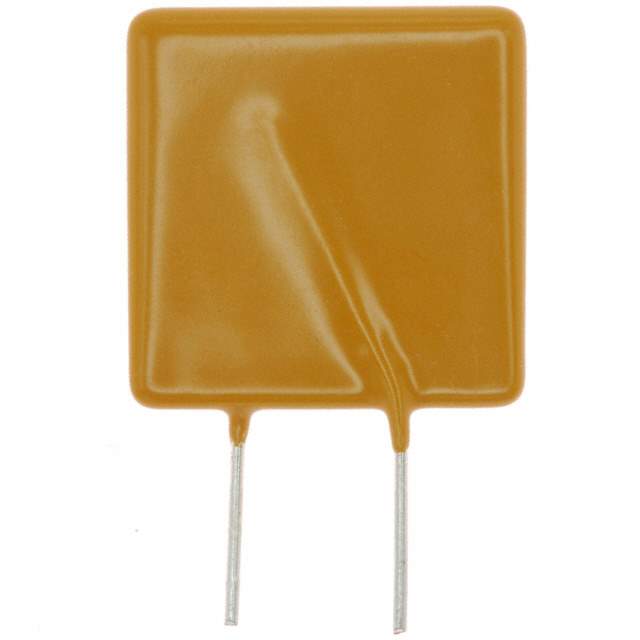

LVRL100S Real Image
Same model may have multiple batches, images only for reference.

LVRL100S

Part No LVRL100S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Line-Voltage-Rated Devices | PTC RESET FUSE 120V 1A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Polymeric
Voltage - Max 120V (135V Int)
Current - Max 10A
Current - Hold (Ih) (Maximum) 1A
Current - Trip (It) 2A
Time to Trip 13.6s
Resistance - Initial (Ri) (Minimum) 180 mOhms
Resistance - Post Trip (R1) (Maximum) 470 mOhms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.453" L x 0.161" W (11.50mm x 4.10mm)
Height - Seated (Maximum) 0.791" (20.10mm)
Lead Spacing 0.200" (5.08mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209642-LVRL100S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVRL100S CAD Model

Description

The Littelfuse LVRL100S is an obsolete circuit protection component with a maximum voltage of 120V and a maximum current of 10A.

  • Maximum Voltage: 120V
  • Maximum Current: 10A
  • Current Trip: 2A
  • Time to Trip: 13.6s
  • Manufacturer Homepage: www.macom.com
  • Package: Radial, Disc
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 500
