Same model may have multiple batches, images only for reference.

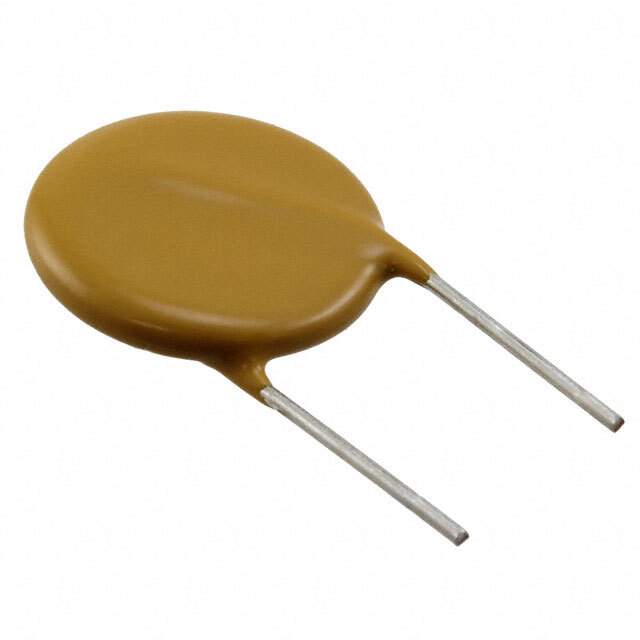

LVR100S-240 Real Image
Same model may have multiple batches, images only for reference.

LVR100S-240

Part No LVR100S-240
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1A(hold) 2A(trip) 240V 10A 2.87W 21s 0.218Ohm Radial 18.7 X 5.1mm Bag / POLYSWITCH PTC RESET 240V 1A
Datasheet
LVR100S-240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVR
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 10A
Current - Hold (Ih) (Maximum) 1A
Current - Trip (It) 2A
Time to Trip 21s
Resistance - Initial (Ri) (Minimum) 218 mOhm
Resistance - Post Trip (R1) (Maximum) 580 mOhm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.740" Dia x 0.200" W (18.70mm x 5.10mm)
Height - Seated (Maximum) 0.960" (24.40mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 784748-LVR100S-240
Popularity Medium
Supply and Demand Status Limited
Family Name LVR
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LVR100S-240 CAD Model

Description

The LVR100S-240 is a PolySwitch LVR series electronic component manufactured by Littelfuse Inc.

  • Maximum Voltage: 240V
  • Maximum Current: 10A
  • Type: Through-hole, Polymeric
  • Temperature Range: -20°C to 85°C
  • Supply and Demand Status: Limited
