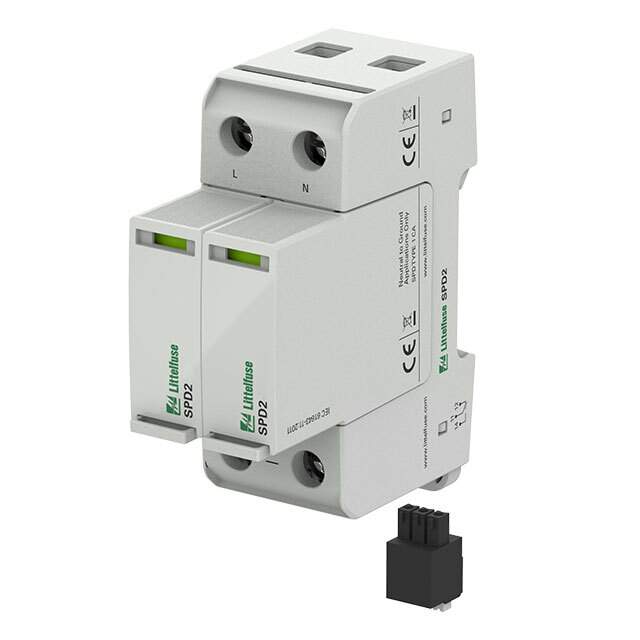

SPD2-150-1P1-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-150-1P1-R

Part No SPD2-150-1P1-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 1P+1 150VAC TYPE 1+2
Datasheet
SPD2-150-1P1-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 1P+1
Package Bulk
Type Type 1, Type 2
Form Base + Module
Number of Poles 2
Voltage - Continuous Operating (Max) (MCOV) 305VAC
Current - Discharge (Nom) (8/20µS) 40 kA
Current - Discharge (Max) (8/20µS) 65 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 1 kV
Voltage - Protection Level (VP) (2416) 1.5 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names F12048,-1024-SPD2-150-1P1-R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1294365-SPD2-150-1P1-R
Ultra Librarian 3D Model Ultra Librarian SPD2-150-1P1-R CAD Model

Description

The SPD2 1P+1 series is a type 1, type 2 surge protection device (SPD) with remote signaling contacts and thermally protected features.

  • Package: Bulk
  • Standard Package: 1
  • Poles: Two
  • Form: Base and module
  • Mounting Type: DIN rail
  • Operating Temperature Range: -40°C to 80°C
  • Voltage Rating: 305VAC for continuous operation
  • Discharge Current: 40kA
  • Maximum Discharge Current: 65kA @ 8/20µS
  • Short Circuit Rating: 200kA
  • Protection Rating: 1kV
  • Protection Level: 1.5kV
