Same model may have multiple batches, images only for reference.

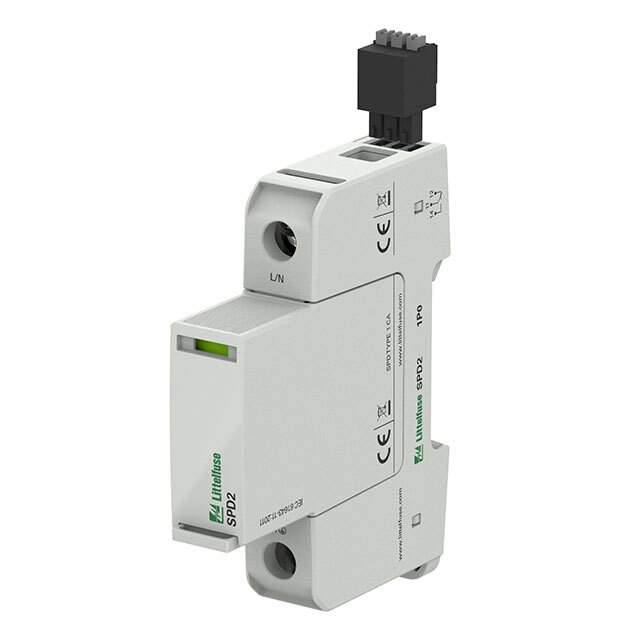

SPD2-150-1P0-R Real Image
Same model may have multiple batches, images only for reference.

SPD2-150-1P0-R

Part No SPD2-150-1P0-R
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description SPD MOD 1P+0 150VAC TYPE 1+2
Datasheet
SPD2-150-1P0-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Surge Protection Devices (SPDs)
Mfr Littelfuse Inc.
Series SPD2 1P+0
Type Type 1, Type 2
Form Base + Module
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 150VAC
Current - Discharge (Nom) (8/20µS) 20 kA
Current - Discharge (Max) (8/20µS) 50 kA
Current - Short Circuit Rating (SCRR) 200 kA
Voltage - Protection Rating (VPR) 600 V
Voltage - Protection Level (VP) (2416) 1.25 kV
Temperature Range - Operating -40°C ~ 80°C
Features Remote Signaling Contacts, Thermally Protected
Mounting Type DIN Rail
Approval Agency CE, cURus, UL, VDE
Other Names F12040,-1024-SPD2-150-1P0-R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1294368-SPD2-150-1P0-R
Ultra Librarian 3D Model Ultra Librarian SPD2-150-1P0-R CAD Model

Description

The SPD2 1P+0 series is a type 1 and type 2 surge protection device (SPD) that has one pole and zero modules.

  • Features: Remote signaling contacts and is thermally protected
  • Voltage - Continuous Operating (max) (MCOV): 150VAC
  • Voltage - Protection Rating (VPR): 600V
  • Current - Discharge (nom) (8/20µS): 20 kA
  • Current - Discharge (max) (8/20µS): 50 kA
  • Current - Short Circuit Rating (SCRR): 200 kA
  • Operating Temperature: -40°C to 80°C
  • Mounting: DIN rail
  • Approvals: CE, cURus, UL, and VDE
  • Manufacturer: Littelfuse Inc.
