Same model may have multiple batches, images only for reference.

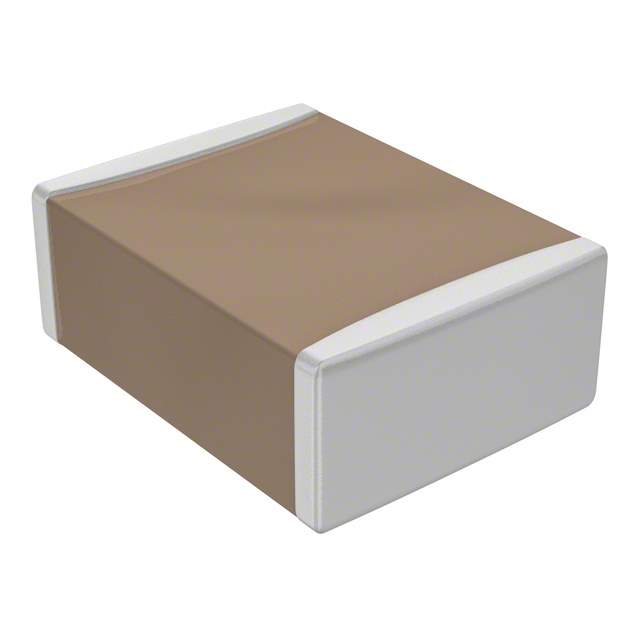

CGADN3X7R1E476M230LE Real Image
Same model may have multiple batches, images only for reference.

CGADN3X7R1E476M230LE

Part No CGADN3X7R1E476M230LE
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 47UF 25V X7R NONSTND / 47 µF ±20% 25V Ceramic Capacitor X7R 3025 (7563 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Soft Termination
Ratings AEC-Q200
Applications Automotive, Boardflex Sensitive
Mounting Surface Mount, MLCC
Case / Package 3025 (7563 Metric)
Size / Dimension 0.295" L x 0.248" W (7.50mm x 6.30mm)
Thickness (Max) 0.098" (2.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 445-172989-1-ND,445-172989-2-ND,445-CGADN3X7R1E476M230LEDKR,CGADN3X7R1E476MT009S,445-172989-6,445-CGADN3X7R1E476M230LETR,445-172989-1,445-172989-2,CGADN3X7R1E476MT000S,445-172989-6-ND,445-CGADN3X7R1E476M230LECT
Standard Package 1,000
Win Source Part Number 1331532-CGADN3X7R1E476M230LE
Ultra Librarian 3D Model Ultra Librarian CGADN3X7R1E476M230LE CAD Model

Description

The TDK Corporation CGADN3X7R1E476M230LE is a surface mount, multilayer ceramic capacitor with a capacitance of 47 µF and a voltage rating of 25V.

  • Mounting: Surface Mount
  • Type: Multilayer Ceramic Capacitor
  • Capacitance: 47 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Package: 3025 (7563 Metric)
  • Termination: Soft Termination
  • Application: Automotive and boardflex sensitive applications
  • AEC-Q200 Rated: Yes
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • Packaging: Reel
  • Quantity: 1,000
