Same model may have multiple batches, images only for reference.

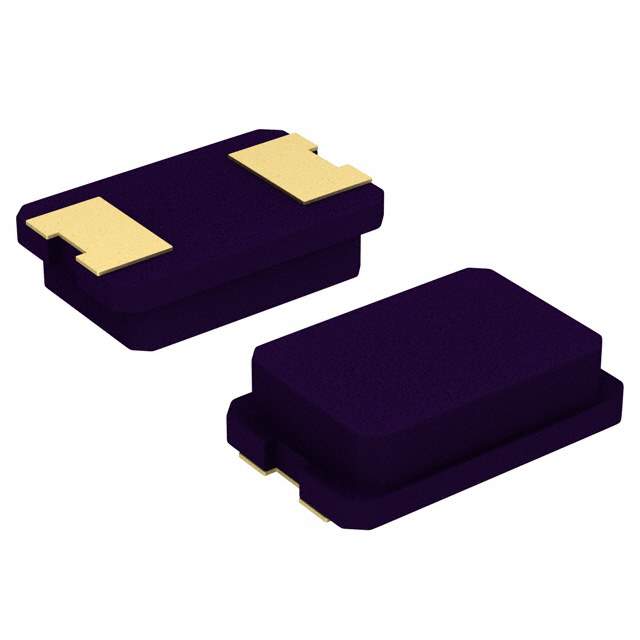

ABM3-20.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-20.000MHZ-B2-T

Part No ABM3-20.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 300-9105-2-ND,535-9105-2,535-9105-6,300-9105-2,535-9105-1,ABM320000MHZB2T,300-9105-1,300-9105-1-ND
Standard Package 1,000
Win Source Part Number 1316297-ABM3-20.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABM3-20.000MHZ-B2-T CAD Model

Description

The ABM3 series MHz crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Type: Surface Mount Device (SMD/SMT) Crystal Oscillator
  • Frequency: 20 MHz
  • Equivalent Series Resistance (ESR): 30 Ohms
  • Frequency Stability: ±50ppm
  • Application: Digital Signal Processing, Microprocessors, and Microcontrollers
  • Standard Package: 1,000
  • Packaging: Tape and Reel
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Temperature Range: -20°C to 70°C
  • Length: 0.197 inches
  • Width: 0.126 inches
