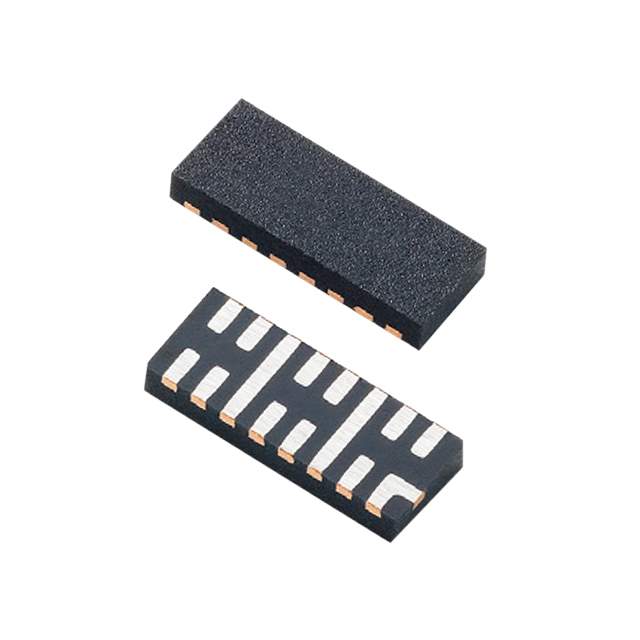

SP8143-06UTG Real Image
Same model may have multiple batches, images only for reference.

SP8143-06UTG

Part No SP8143-06UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP814X, SPA®
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 6
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Clamping (Max) @ Ipp 10.3V (Typ)
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 16-UFDFN
Supplier Device Package 16-µDFN (3.5x1.35)
Other Names -SP8143-06UTG,F7508DKR,F7508TR,F7508CT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299989-SP8143-06UTG
Ultra Librarian 3D Model Ultra Librarian SP8143-06UTG CAD Model

Description

The SP8143-06UTG is a 6-channel steering (rail to rail) transient voltage suppressor diode designed for HDMI applications.

  • Series: SP814X and SPA®
  • Voltage - Reverse Standoff: 5V (max)
  • Voltage - Clamping: 10.3V (typ) @ Ipp
  • Peak Pulse Current: 2A (8/20µs)
  • Capacitance: 1pF @ 1MHz
  • Package: 16-UFDFN
  • Supplier Device Package: 16-µDFN (3.5x1.35)
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Status: obsolete and has been replaced by F7508DKR, F7508TR, and F7508CT
