Same model may have multiple batches, images only for reference.

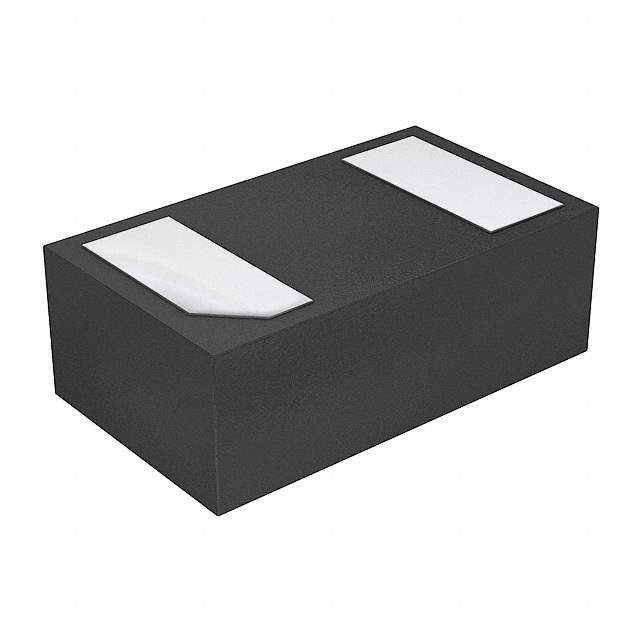

SP0402U-ELC-01ETG Real Image
Same model may have multiple batches, images only for reference.

SP0402U-ELC-01ETG

Part No SP0402U-ELC-01ETG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPA®
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V
Voltage - Breakdown (Min) 8.8V (Typ)
Voltage - Clamping (Max) @ Ipp 13V (Typ)
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.3pF @ 1MHz
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402/2DFN (1x0.60)
Other Names 18-SP0402U-ELC-01ETGDKR,F9745TR,18-SP0402U-ELC-01ETGCT,F9745TR,18-SP0402U-ELC-01ETGTR
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299983-SP0402U-ELC-01ETG
Ultra Librarian 3D Model Ultra Librarian SP0402U-ELC-01ETG CAD Model

Description

The SP0402U-ELC-01ETG is a Zener diode manufactured by Littelfuse Inc.

  • Voltage - Reverse Standoff: 7V
  • Voltage - Breakdown: 8.8V (typical)
  • Voltage - Clamping: 13V (typical) @ Ipp
  • Power - Peak Pulse: -
  • Package / Case: 0402 (1006 Metric)
  • Channel Type: Unidirectional
  • Maximum Peak Current: 2.5A (10/1000µs)
  • Capacitance: 0.3pF @ 1MHz
