Same model may have multiple batches, images only for reference.

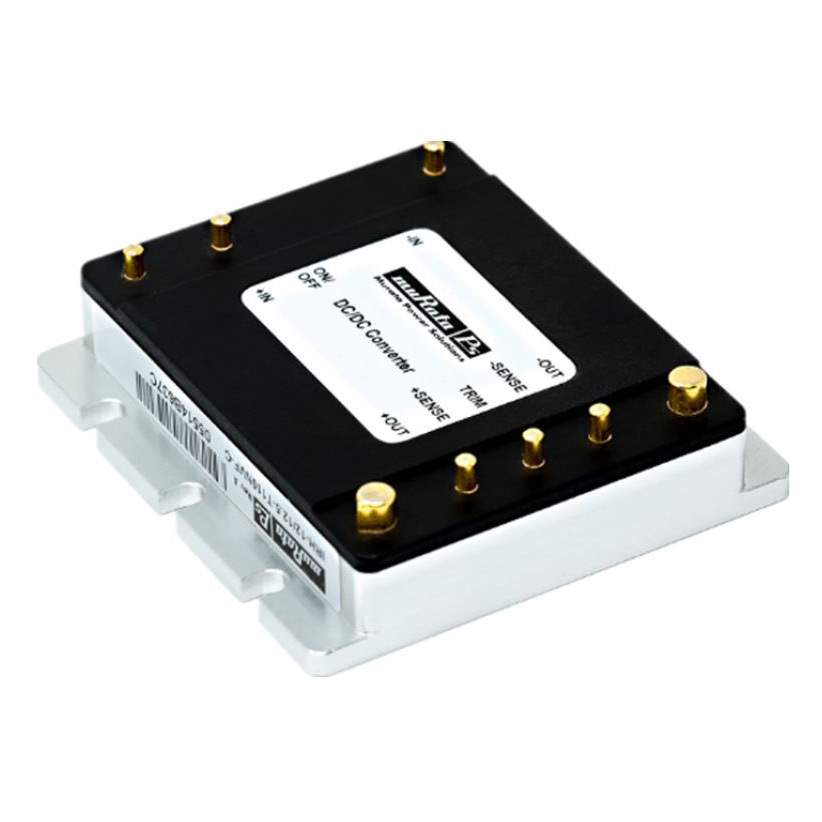

IRH-12/12.5-T110NF-C Real Image
Same model may have multiple batches, images only for reference.

IRH-12/12.5-T110NF-C

Part No IRH-12/12.5-T110NF-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 150W / Isolated Module DC DC Converter 1 Output 12V 12.5A 57.6V - 160V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series IRH (150W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 57.6V
Voltage - Input (Max) 160V
Voltage - Output 1 12V
Current - Output (Max) 12.5A
Power (Watts) 150 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89.5%
Mounting Type Through Hole
Package / Case Half Brick
Dimension 2.29" L x 2.20" W x 12.7" H (58.2mm x 55.9mm x 12.7mm)
Supplier Device Package Half Brick
Base Product Number IRH-12
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names IRH-12/12.5-T110NF-C-ND,811-3468
Standard Package 36
Win Source Part Number 1055252-IRH-12/12.5-T110NF-C
Ultra Librarian 3D Model Ultra Librarian IRH-12/12.5-T110NF-C CAD Model

Description

The IRH (150W) isolated module by Murata Power Solutions Inc. is a power supply board mount DC-DC converter that is designed for ITE (Commercial) and railway applications.

  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO
  • Power Output: 150W
  • Voltage Isolation: 3kV
  • Output Type: Single
  • Maximum Current Output: 12.5A
  • Input Voltage Range: 57.6V to 160V
  • Output Voltage: 12V
  • Efficiency: 89.5%
  • Mounting Type: Through-Hole
  • Package/Case: Half Brick
  • Operating Temperature Range: -40°C ~ 85°C (with derating)
  • Dimension: 2.29" L x 2.20" W x 12.7" H (58.2mm x 55.9mm x 12.7mm)
  • Alternative Names: Murata Power Solutions Inc. IRH-12/12.5-T110NF-C-ND and 811-3468
