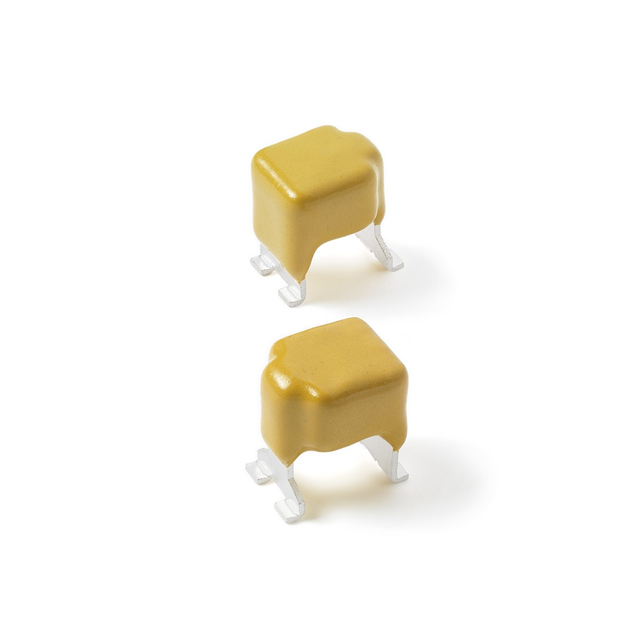

SMTAK3-015C Real Image
Same model may have multiple batches, images only for reference.

SMTAK3-015C

Part No SMTAK3-015C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMTAK3-015C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMTAK3
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16V
Voltage - Clamping (Max) @ Ipp 28V
Current - Peak Pulse (10/1000µs) 3000A (3kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 9000pF @ 10kHz (Max)
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package SMTAK
Other Names -SMTAK3-015C
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299998-SMTAK3-015C
Ultra Librarian 3D Model Ultra Librarian SMTAK3-015C CAD Model

Description

The SMTAK3-015C is a Zener type circuit protection TVS diode from Littelfuse Inc.

  • Package Type: Tape and Reel
  • Mounting Type: 2-SMD
  • Application: General Purpose
  • Standard Package: 200
  • Channel Type: Bidirectional
  • Voltage Reverse Standoff: 15V
  • Breakdown Voltage: 16V (min)
  • Clamping Voltage: 28V @ Ipp
  • Capacitance @ Frequency: 9000pF @ 10kHz (Max)
  • Current Peak Pulse: 3000A (3kA) (8/20μs)
  • Temperature Range: -55°C ~ 125°C (TJ)
  • ECCN: EAR99 compliant
