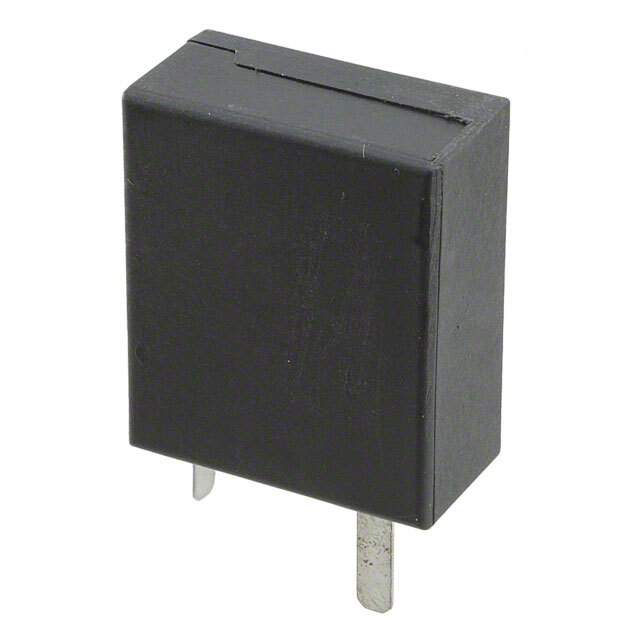

SMOV25S461MP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S461MP

Part No SMOV25S461MP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 460 V
Maximum DC Volts 615 V
Varistor Voltage (Min) 675 V
Varistor Voltage (Typ) 750 V
Varistor Voltage (Max) 825 V
Current - Surge 20 kA
Energy 490J
Number of Circuits 1
Capacitance @ Frequency 750 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names -SMOV25S461MP
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294330-SMOV25S461MP
Ultra Librarian 3D Model Ultra Librarian SMOV25S461MP CAD Model

Description

The SMOV25S461MP is a TVS (Transient Voltage Suppressor) varistor from Littelfuse Inc. designed for use in circuit protection applications.

  • Capacitance: 750 pF @ 1 MHz
  • Varistor Voltage Range: 675 V to 825 V
  • Feature: Thermal protection
  • Surge Current: Up to 20 kA
  • Maximum AC Voltage: 460 V
  • Maximum DC Voltage: 615 V
  • Mounting: Through hole in a box with 5 leads
  • Package Bulk: 32
  • Maximum Energy Rating: 490J
  • Operating Temperature Range: -45°C to 75°C
