Same model may have multiple batches, images only for reference.

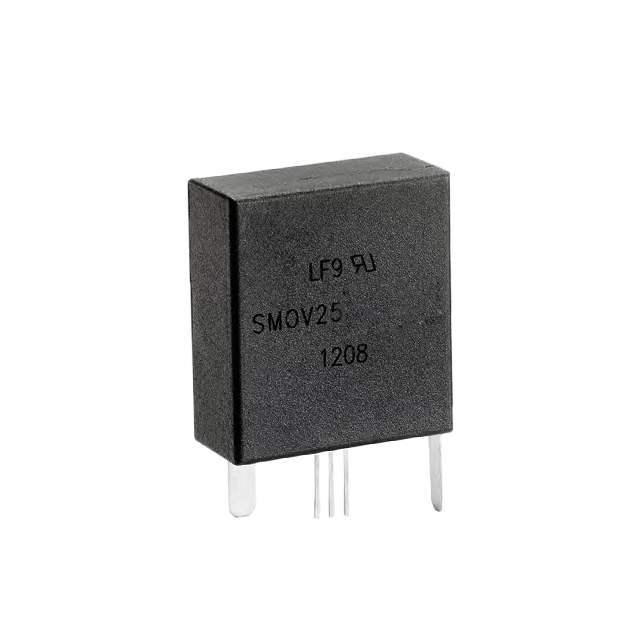

SMOV25S421NP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S421NP

Part No SMOV25S421NP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 420 V
Maximum DC Volts 560 V
Varistor Voltage (Min) 612 V
Varistor Voltage (Typ) 680 V
Varistor Voltage (Max) 748 V
Current - Surge 20 kA
Energy 460J
Number of Circuits 1
Capacitance @ Frequency 820 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names -SMOV25S421NP,F5847
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294333-SMOV25S421NP
Ultra Librarian 3D Model Ultra Librarian SMOV25S421NP CAD Model

Description

The Littelfuse Inc. 1294333-SMOV25S421NP is a thermally protected TVS - varistor, MOV used in circuit protection applications.

  • Series: SMOV25S series
  • Capacitance: 820pF @ 1 MHz
  • Varistor Voltage (min): 612V
  • Varistor Voltage (typ): 680V
  • Varistor Voltage (max): 748V
  • Maximum AC volts: 420V
  • Maximum DC volts: 560V
  • Current - surge: 20kA
  • Energy: 460J
  • Packaging: Bulk packaging
  • Standard package: 32
  • Package/case: Box, 5 lead
  • Mounting: Through hole technology
  • MSL level: 1 (Unlimited)
  • HTSUS: 8533.40.4000
