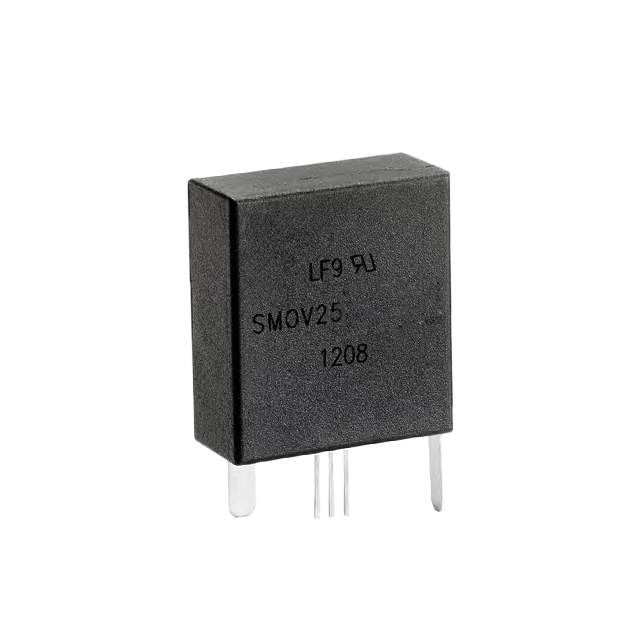

SMOV25S421MP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S421MP

Part No SMOV25S421MP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 420 V
Maximum DC Volts 560 V
Varistor Voltage (Min) 612 V
Varistor Voltage (Typ) 680 V
Varistor Voltage (Max) 748 V
Current - Surge 20 kA
Energy 460J
Number of Circuits 1
Capacitance @ Frequency 820 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names -SMOV25S421MP
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294332-SMOV25S421MP
Ultra Librarian 3D Model Ultra Librarian SMOV25S421MP CAD Model

Description

The SMOV25S421MP is a thermally protected TVS-Varistor from Littelfuse Inc.

  • Function: Protect electronic circuits from voltage surges and transients
  • Capacitance: 820 pF @ 1 MHz
  • Varistor Voltage Range: 612 V to 748 V
  • Maximum Surge Current: 20 kA
  • Maximum AC Voltage: 420 V
  • Maximum DC Voltage: 560 V
  • Energy Rating: 460J
  • Mounting: Through a hole
  • Package: Box with 5 leads
  • Operating Temperature: -45°C to 75°C (TA)
