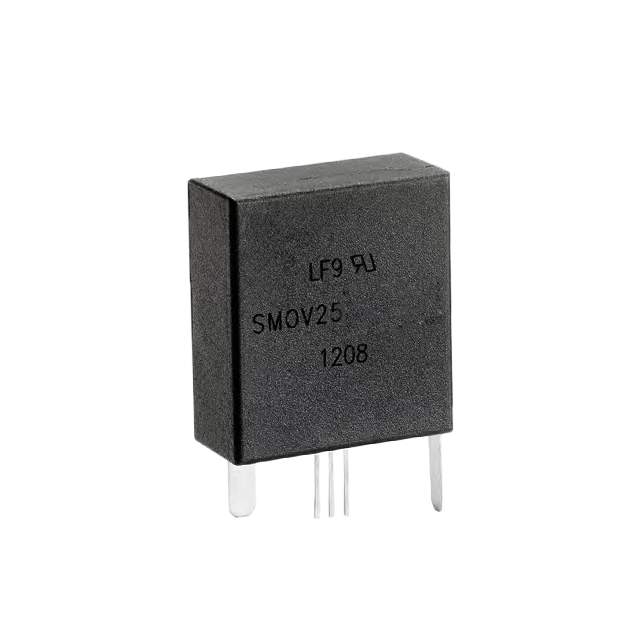

SMOV25S111NP Real Image
Same model may have multiple batches, images only for reference.

SMOV25S111NP

Part No SMOV25S111NP
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series SMOV25S
Package Bulk
Maximum AC Volts 115 V
Maximum DC Volts 150 V
Varistor Voltage (Min) 162 V
Varistor Voltage (Typ) 180 V
Varistor Voltage (Max) 198 V
Current - Surge 20 kA
Energy 170J
Number of Circuits 1
Capacitance @ Frequency 3200 pF @ 1 MHz
Temperature Range - Operating -45°C ~ 75°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Box, 5 Lead
Other Names -SMOV25S111NP,F5836
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1294344-SMOV25S111NP
Ultra Librarian 3D Model Ultra Librarian SMOV25S111NP CAD Model

Description

The SMOV25S111NP is a thermally protected TVS Varistor from Littelfuse Inc.

  • Package: Bulk packaged
  • Circuits: 1 circuit
  • Package: Box with 5 leads for through-hole mounting
  • Capacitance: 3200 pF @ 1 MHz
  • Varistor Voltage: 162 V to 198 V
  • Maximum AC Voltage: 115 V
  • Maximum DC Voltage: 150 V
  • Surge Current: 20 kA
  • Energy: 170 J
  • Operating Temperature Range: -45°C to 75°C (TA)
  • Ideal for: Circuit protection in TVS - Varistors and MOVs
