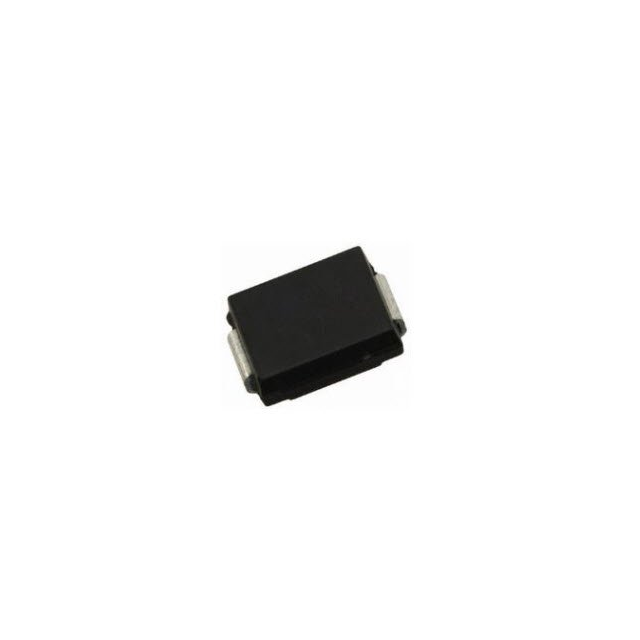

SMBJ180 Real Image
Same model may have multiple batches, images only for reference.

SMBJ180

Part No SMBJ180
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMBJ180 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SMBJ
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 180V
Voltage - Breakdown (Min) 190.35V
Voltage - Clamping (Max) @ Ipp 306.6V
Current - Peak Pulse (10/1000µs) 2.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Other Names -SMBJ180
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300639-SMBJ180
Ultra Librarian 3D Model Ultra Librarian SMBJ180 CAD Model

Description

The Littelfuse Inc. 1300639-SMBJ180 is a Zener type TVS diode designed for general-purpose applications.

  • Voltage - Reverse Standoff (Typ): 180V
  • Voltage - Breakdown (Min): 190.35V
  • Voltage - Clamping (Max) @ Ipp: 306.6V
  • Power - Peak Pulse: 600W
  • Current - Peak Pulse (10/1000µs): 2.1A
  • Package: DO-214AA (SMB) tape & reel
  • Operating Temperature Range: -65°C to 150°C (TJ)
