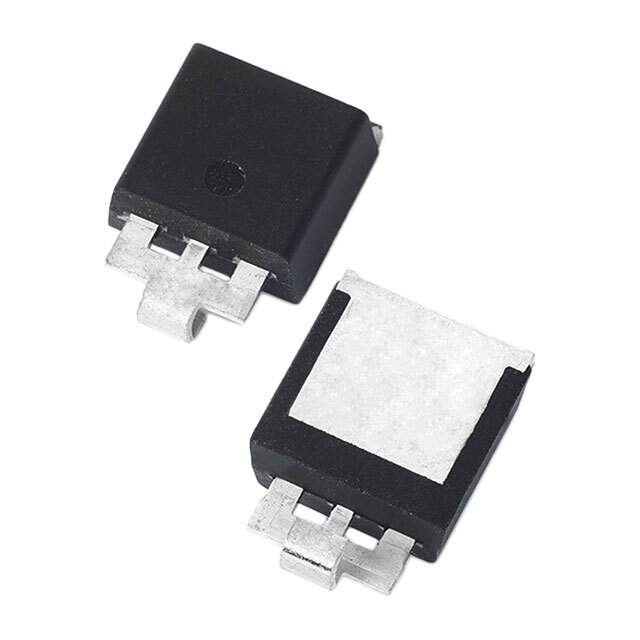

SLD8S20A Real Image
Same model may have multiple batches, images only for reference.

SLD8S20A

Part No SLD8S20A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SLD8S20A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, SLD8S
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V
Voltage - Breakdown (Min) 22.2V
Voltage - Clamping (Max) @ Ipp 32.4V
Current - Peak Pulse (10/1000µs) 216A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case Nonstandard SMD
Supplier Device Package SMTO-263
Other Names F8153CT,F8153DKR,F8153TR,-SLD8S20A
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300859-SLD8S20A
Ultra Librarian 3D Model Ultra Librarian SLD8S20A CAD Model

Description

The SLD8S20A is an automotive-grade unidirectional TVS diode designed for circuit protection in automotive applications.

  • Application: Automotive
  • Channel Type: Unidirectional
  • Voltage - Reverse Standoff: 20V
  • Voltage - Breakdown: 22.2V
  • Voltage - Clamping (Max) @ 216A: 32.4V
  • Power - Peak Pulse: 7kW
  • Operating Temperature: -55°C to 175°C
  • Manufacturer: Littelfuse Inc.
