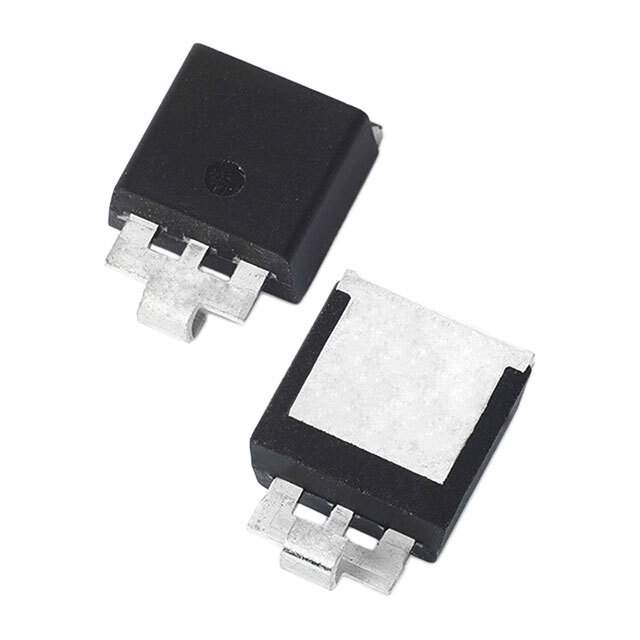

SLD8S13A Real Image
Same model may have multiple batches, images only for reference.

SLD8S13A

Part No SLD8S13A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SLD8S13A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, SLD8S
Package Tape & Reel
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13V
Voltage - Breakdown (Min) 14.4V
Voltage - Clamping (Max) @ Ipp 21.5V
Current - Peak Pulse (10/1000µs) 326A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case Nonstandard SMD
Supplier Device Package SMTO-263
Other Names -SLD8S13A,F8147DKR,F8147CT,F8147TR
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300851-SLD8S13A
Ultra Librarian 3D Model Ultra Librarian SLD8S13A CAD Model

Description

The SLD8S13A is a Zener type circuit protection TVS diode from Littelfuse Inc.

  • Mounting Type: SMD
  • Packaging: Tape and Reel
  • Application: Automotive
  • Standard Package: 500
  • Channel Type: Unidirectional
  • Voltage - Reverse Standoff: 13V
  • Voltage - Breakdown (Min): 14.4V
  • Voltage - Clamping @ Ipp: 21.5V
  • Power - Peak Pulse: 7000W (7kW)
  • Current - Peak Pulse: 326A
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • ECCN: EAR99
