Same model may have multiple batches, images only for reference.

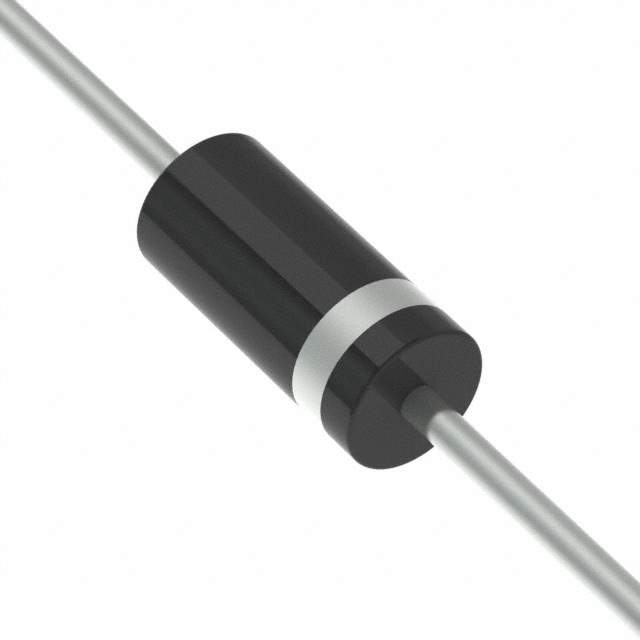

SA14A-B Real Image
Same model may have multiple batches, images only for reference.

SA14A-B

Part No SA14A-B
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SA14A-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SA
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 14V
Voltage - Breakdown (Min) 15.6V
Voltage - Clamping (Max) @ Ipp 23.2V
Current - Peak Pulse (10/1000µs) 22A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Other Names -SA14A-B
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300787-SA14A-B
Ultra Librarian 3D Model Ultra Librarian SA14A-B CAD Model

Description

The 1300787-SA14A-B is a TVS diode component that is designed for use in various electronic devices.

  • Series: SA
  • Category: Circuit protection
