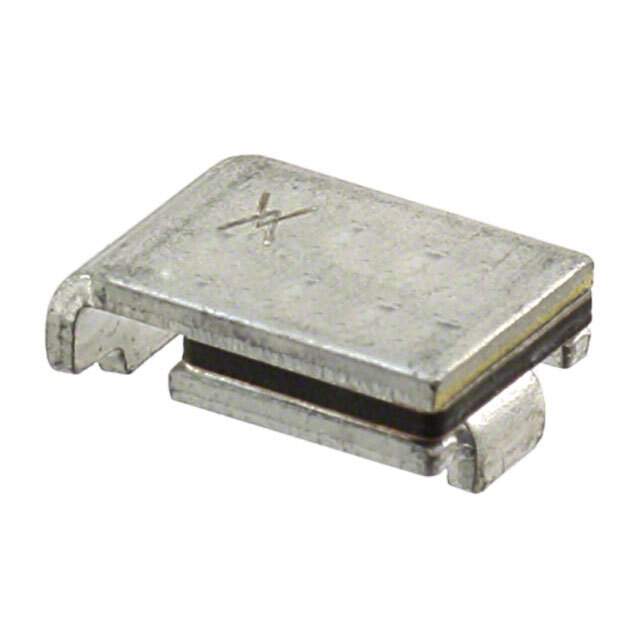

Same model may have multiple batches, images only for reference.

ASMD075F-2

Name: ASMD075F-2
Brand: Littelfuse Inc.
SKU: 1314344
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ASMD075F-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	ASMD075F-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, ASMD
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Polymeric
Voltage - Max	30V
Current - Max	40 A
Current - Hold (Ih) (Max)	600 mA
Current - Trip (It)	1.48 A
Time to Trip	20 s
Resistance - Initial (Ri) (Min)	290 mOhms
Resistance - Post Trip (R1) (Max)	1 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	AEC-Q200
Mounting	SMD (SMT)
Package / Case	2-SMD
Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max)	0.125" (3.18mm)
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1314344-ASMD075F-2
Ultra Librarian 3D Model	Ultra Librarian ASMD075F-2 CAD Model

Description

The Littelfuse Inc. 1314344-ASMD075F-2 is a PolySwitch® ASMD polymeric PTC resettable fuse in the circuit protection category.

Type: Polymeric PTC Resettable Fuse
Package: 2-SMD
Maximum Voltage: 30V
Maximum Current: 40A
Current Hold (Ih): 600mA
Current Trip (It): 1.48A
Time to Trip: 20s
Resistance - Initial (Ri): 290mOhms
Resistance - Post Trip (R1): 1 Ohms
Operating Temperature: -40°C to 85°C
MSL Level: 2A (4 Weeks)
HTSUS: 8533.40.8070
